GREASE CONTAINER PRESSURISED FOLLOWER SERIES

GREASE CONTAINER PRESSURISED FOLLOWER SERIES

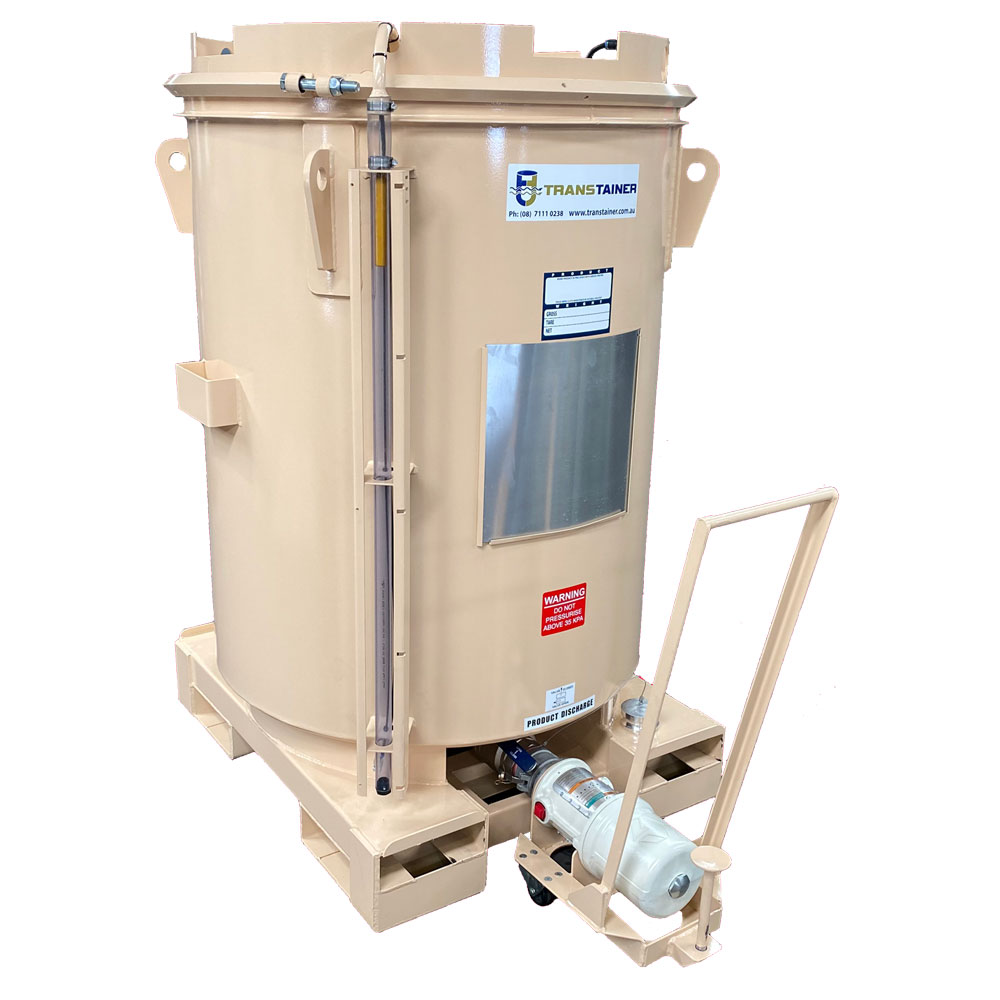

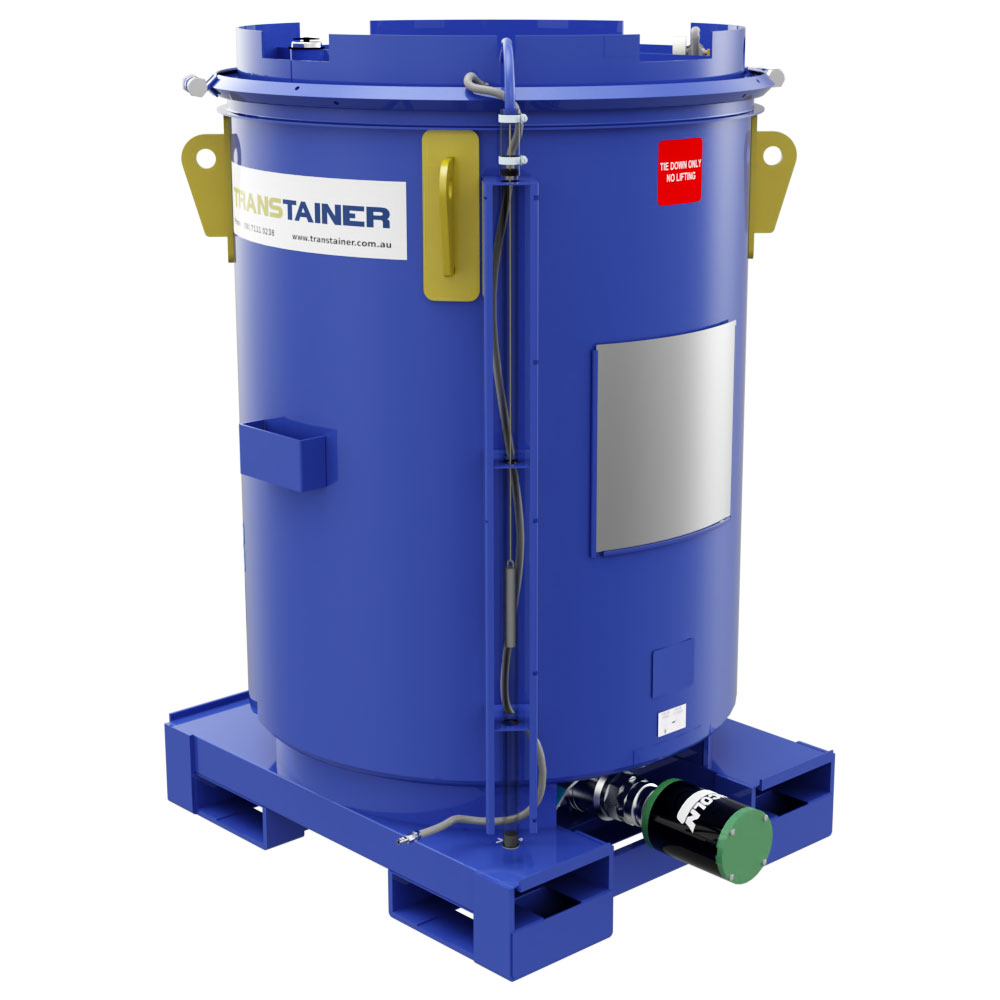

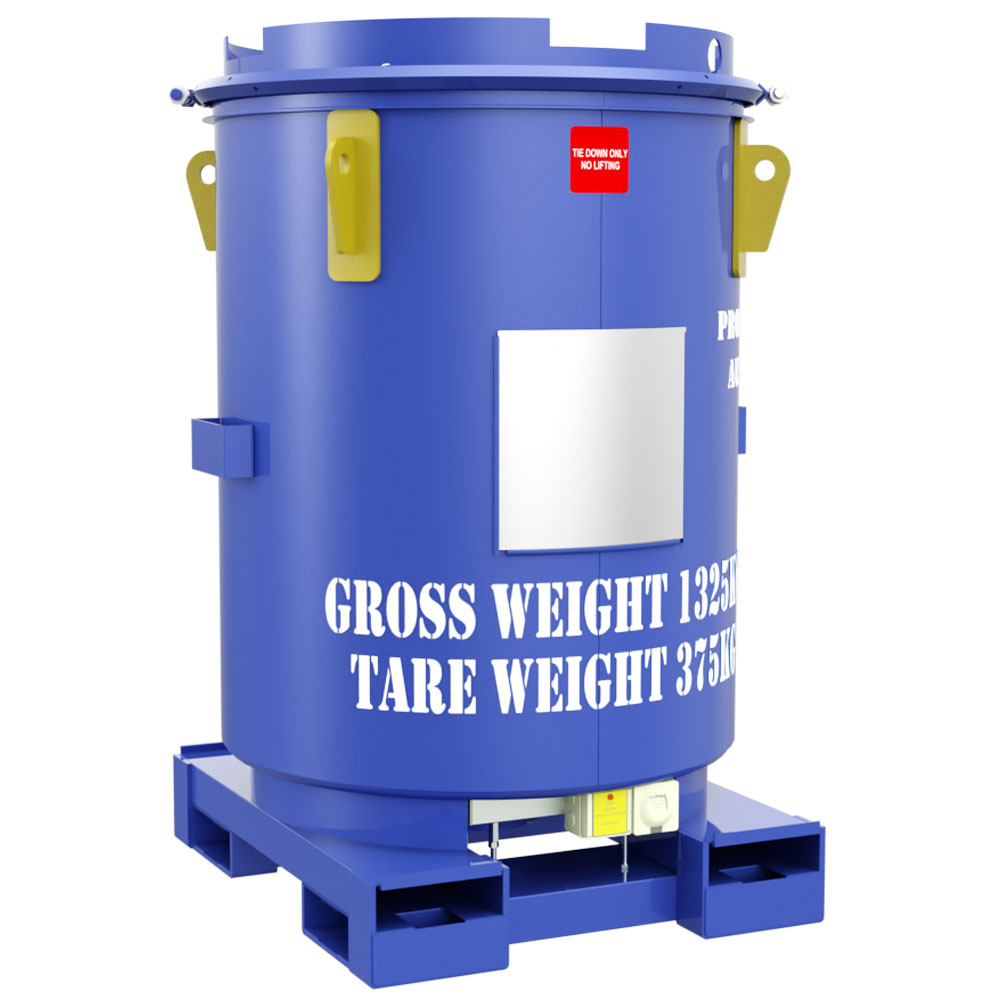

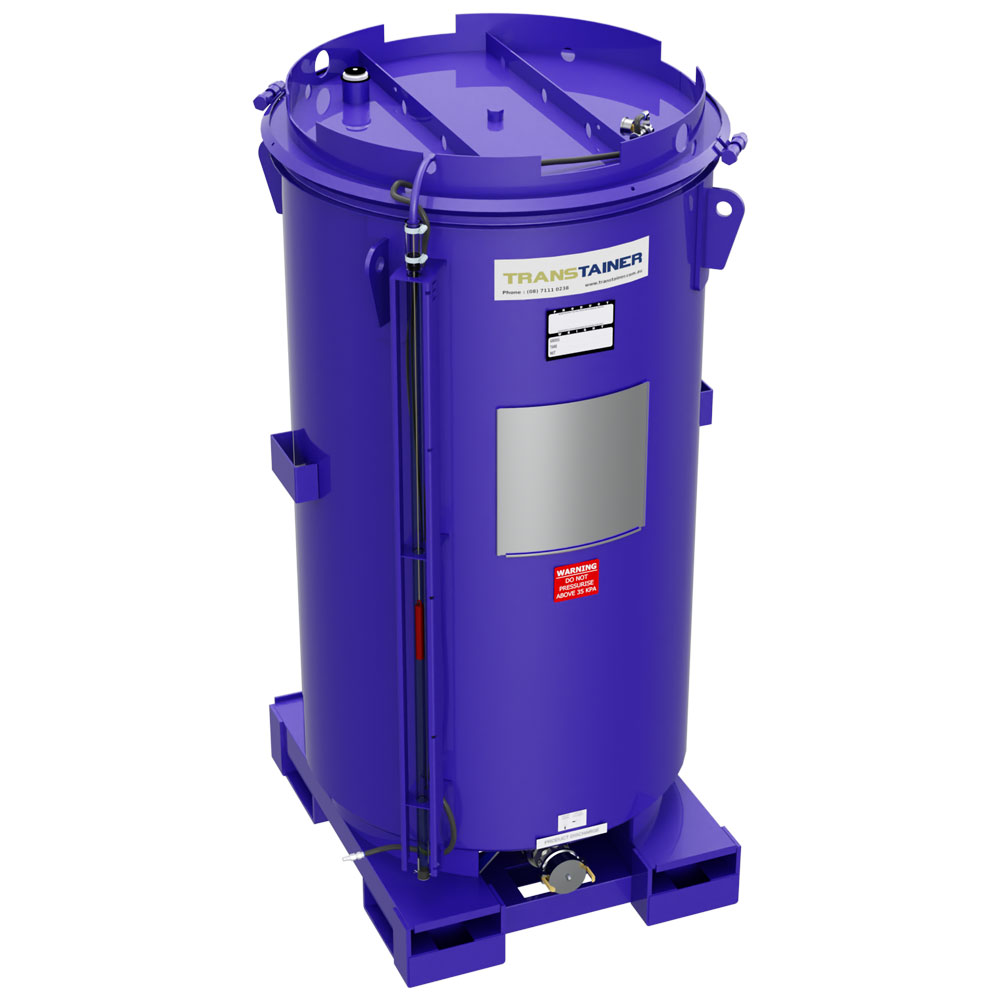

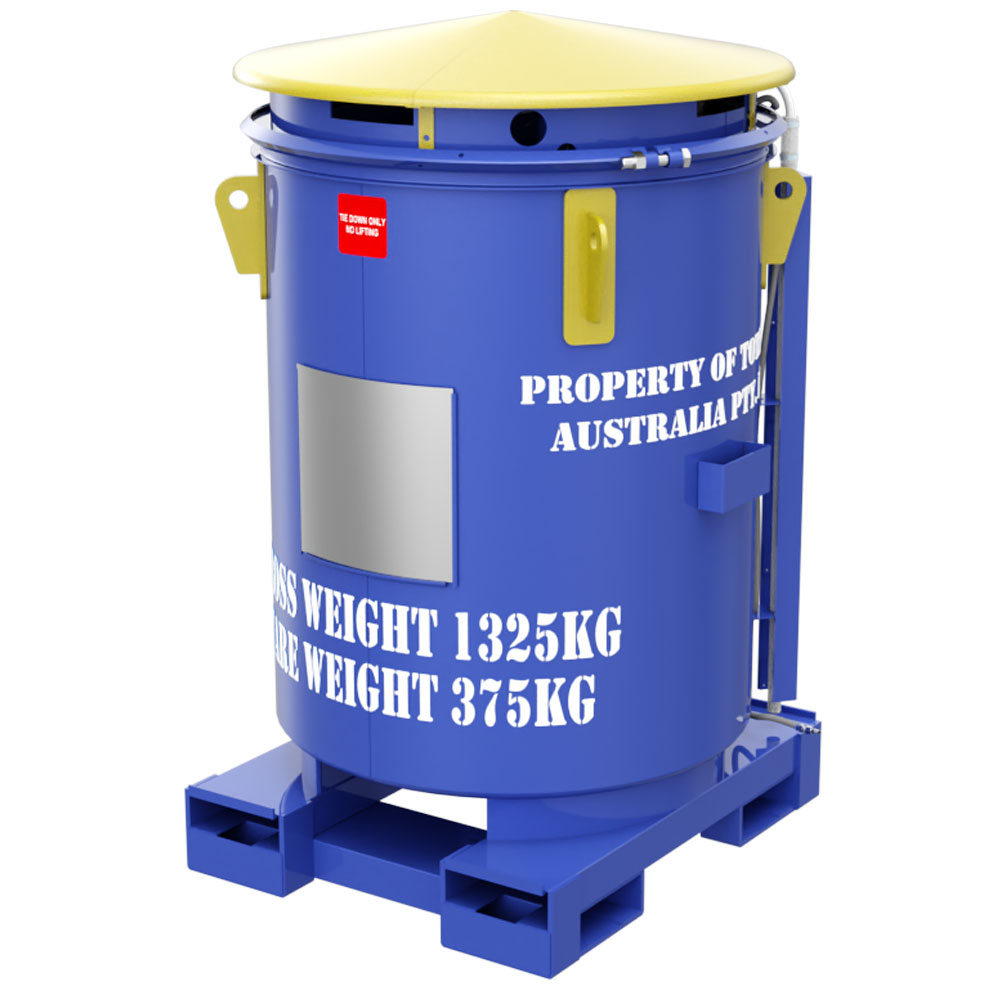

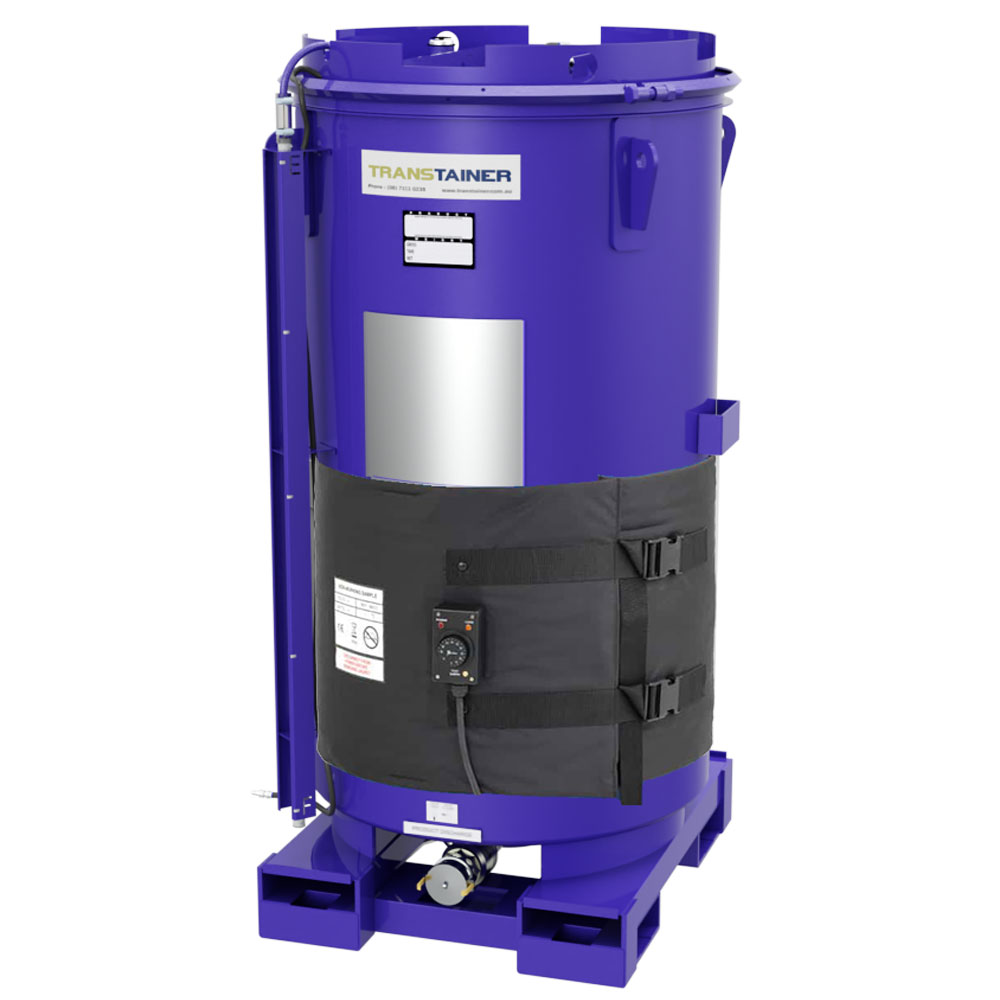

Transtainer Grease Containers Pressurised Follower “GREPF” Series are Circular Grease Bins specifically designed for semi bulk storage, transportation and dispensing of all grades of grease and similar viscous materials such as: ink, food, adhesives, pastes and coatings. Transtainer’s Grease Containers have evolved over the years after significant market input into the design, hence the products are field-proven grease dispensing solutions for existing clientele and prospective customers. The effective discharging mechanism of the system provides high purge rates. Pump prime is assisted via the use of a pressurised follower operating at 35 kPa. The assembly is founded on standard pallet footprint for efficient freight operations. A variety of sizes available to provide customers flexibility of choice including custom designs and material options in Mild Steel and Stainless Steel. The units have become the grease container of choice for many customers due to high reliability, low cost operations, cost effective transportation and high purge rates of viscous materials.

Features and Benefits Usage Capacities Applications
Minimal Residual
Reduced Contamination
Field Proven Design		 Delivery
Storage
Transportation 		 1,200 litres
1,500 litres		 Grease
Ink
Adhesives
Pastes

PRODUCT EQUIPMENT AND MATERIAL DATA

Standard Equipment – Fill / Discharge Point: 3” ball valve
– Coupling: 3” camlock adapter and cap
– Level Indicator: Sight gauge with E,1/4, 1/2, 3/4, F level increments
– Vents: Pressure 35 kPa, Vacuum -3.5kPa
– Air Line Fitting: 10mm BSP (F) socket
– Bottom Lift: Four way forklift entry
– Top Lift: Four lifting lugs
– All external surfaces grit blasted primed and top coated
– Remote air line
– Air regulator and gauge
– Aluminium equipment information panel
Auxiliary / Optional Equipment – Pump spear adapter
– Grease supply manifolds
– Unloader stand
– Bulk grease delivery trays
– Electronic switching
– Corporate colours
– GPS position tracking management

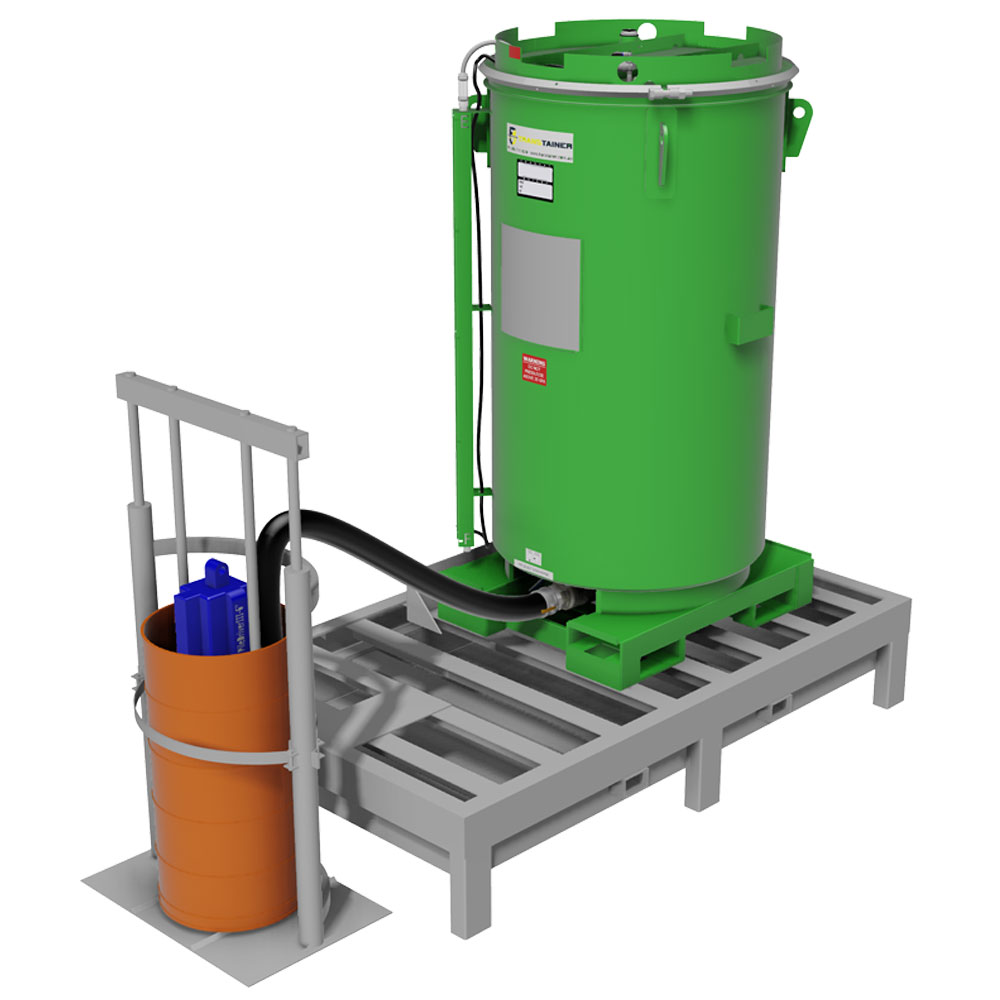

– Remote volume management, pressure pallet or ultrasonic
Materials and Options – Shell: 3mm mild steel black sheet
   Shell thickness varies with bin height
   304 stainless steel optional
– Lid: 5mm mild steel black sheet
– Skid assembly: 3-8mm mild steel black sheet and sections
– Skid Feet: 10mm mild steel black sheet and sections
– Lid & Vent Gaskets: Rubber extrusion
– Follower: Laminated PVC
– Camlocks: Aluminium
– Lifting Lugs: 12 mm mild steel black sheet
– Aluminium equipment information panel

PRODUCT CODES AND DIMENSIONS

GREASE CONTAINER PRESSURISED FOLLOWER SERIES
Product Code Capacity (L) Length (mm) Width (mm) Height (mm) Weight (kg)
GREPF500 500 1160 1164 1136 335
GREPF700 700 1160 1164 1426 360
GREPF1000 1,000 1160 1164 1726 385
GREPF1200 1,200 1160 1164 1926 397
GREPF1500 1,500 1160 1164 2226 427

OUTSIDE FEATURES

INSIDE FEATURES

STANDARD PARTS​

Discharge Outlet

Controlled and secure discharge outlet complete with ball valve and cam lock assembly

Specifications​

  1. Elbow 90° 50mm Male-Female SS316
  2. Hex Nipple 50mm BSP SS316
  3. Ball Valve 50mm Female-Female SS316
  4. Camlock 50mm Male-Male SS316
  5. Camlock Dust Cap 50mm

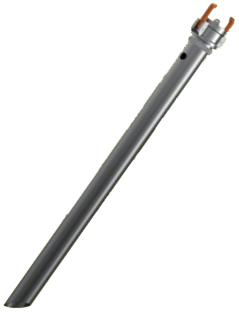

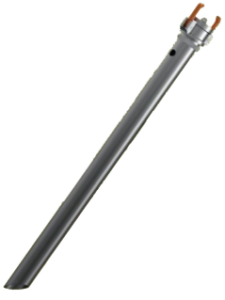

Fill Inlet

Secure and Compliant anti-splash fill tube with anti-siphon hole

Specifications​

  1. Pipe 50mm threaded-end BSP SS
  2. Anti-siphon hole
  3. Camlock 50mm Male-Female SS316
  4. Camlock Dust Cap 50mm SS316

Sample Collection Outlet

Low level sample collection outlet

Specifications​

  1. Bush 50mmx20mm SS316
  2. Pipe 20mm threaded-end BSP SS304
  3. Ball Valve 20mm Female-Female SS316 (w/ Locking Device)
  4. Camlock 20mm Male-Male SS316
  5. Camlock Dust Cap 20mm SS316

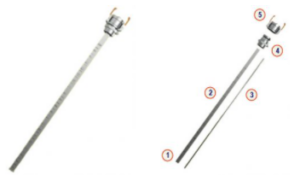

Dip Stick

For fuel monitoring

Specifications​

  1. CT Dip Stick Bottom Plate SS304? welded to tank
  2. CT Dip Stick Guide Tube with inscribed scale in Litres SS304?
  3. CT Dip Stick SS304
  4. Camlock 50mm Male-Male SS316
  5. Camlock Dust Cap 50mm SS316

STANDARD PARTS

Discharge Outlet Exploded Parts Specifications
Controlled and secure discharge outlet complete with ball valve and cam lock assembly

  1. Elbow 90° 50mm Male-Female SS316
  2. Hex Nipple 50mm BSP SS316
  3. Ball Valve 50mm Female-Female SS316
  4. Camlock 50mm Male-Male SS316
  5. Camlock Dust Cap 50mm SS316

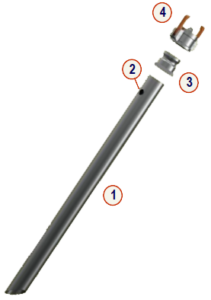

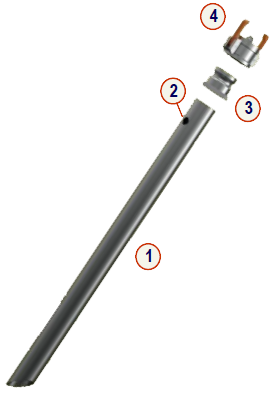

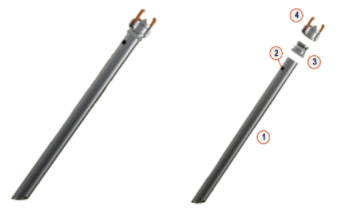

Fill Inlet Exploded Parts Specifications
Secure and Compliant anti-splash fill tube with anti-siphon hole
Fill Inlet

  1. Pipe 50mm threaded-end BSP SS
  2. Anti-siphon hole
  3. Camlock 50mm Male-Female SS316
  4. Camlock Dust Cap 50mm SS316

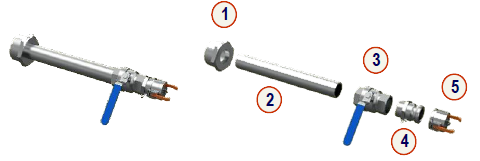

Sample Collection Outlet Exploded Parts Specifications
Low level sample collection outlet


  1. Bush 50mmx20mm SS316
  2. Pipe 20mm threaded-end BSP SS304
  3. Ball Valve 20mm Female-Female SS316 (w/ Locking Device)
  4. Camlock 20mm Male-Male SS316
  5. Camlock Dust Cap 20mm SS316

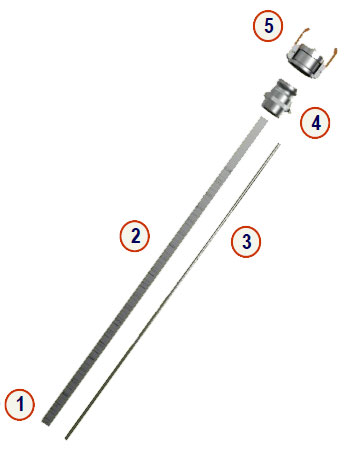

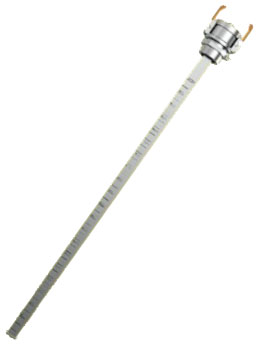

Dip Stick Exploded Parts Specifications
For fuel monitoring


  1. CT Dip Stick Bottom Plate SS304? welded to tank
  2. CT Dip Stick Guide Tube with inscribed scale in Litres SS304?
  3. CT Dip Stick SS304
  4. Camlock 50mm Male-Male SS316
  5. Camlock Dust Cap 50mm SS316

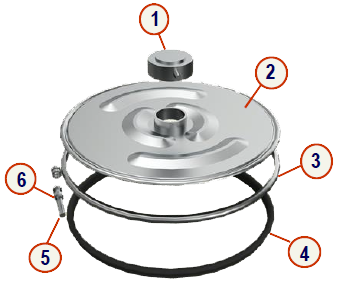

IBC Manway Lid Exploded Parts Specifications
Manway Lid with secure fusible cap


  1. CT IBC Fusible Cap 75mm
  2. CT IBC Lid Plate
  3. CT IBC Lid Clamp
  4. Manway-Lid Seal Gasket
  5. Hex Bolt M16x2.0 120-long GR8.8 SS316
  6. Hex Nut M16x2.0 GR8.8 SS316
UN Approval Nameplate Exploded Parts Specifications
Low level Nameplate stamped with UN approval number for the IBC

UN 31A/Y/03 19/AUS/TRANSTAINER DGSA061/1706/948

OPTIONAL PARTS

Pressure / Vacuum Vent Specifications
Designed to protect the tank from any over-pressure or any vacuum in excess.
Pressure Vacuum Vent
  1. Pressure Relief Valve 50mm BSP SS316 Viton® O-ring seal 35kPa/3.5kPa
  2. Pressure settings = 35 kPa
  3. Vacuum settings = 2.00 – 11.0 kPa
  4. Working Temperature = -40°C to +200°C NB: temperature range vary according to O-ring material
Dry Break Coupling Specifications
Ensures quick and safe connection of hose assemblies and loading arms to mobile and stationary tanks under pressure and with minimised liquid loss.
Both coupling parts are equipped with a flat poppet valve to control the flow.

Dry Break Coupling
  1. STANAG 3756 Dry Break Fitting
  2. 50mm BSP Female SS316 Viton® O-ring seal Hose Coupling
  3. Max. Working Pressure = 2500 kPa
    Test Pressure = 3750 kPa
  4. Min. Burst Pressure = 12500 kPa
  5. Working Temperature = -20°C to +200°C NB: temperature range vary according to O-ring material
Desiccant Filter Specifications
Combined Air Breather and Water Removal Filter Air flowing into the tank through the desiccant breather, initially passes through the drying material and then through an air filter element to filter out the contained dirt particles. The condition of the drying material changes as the absorbed moisture increases and the colour changes gradually from red to orange.Desiccant Filter
  1. Drying Material: Non-toxic ZR gel granules
  2. Air Filter Element: 3 μm
Cleaning Spray Ball Specifications
The main purpose of rotary spray ball is to wash medium and small-shaped inner tank containers. Effective cleaning, low energy consumption, at any angle, comprehensive universal washing tank, alternative to traditional static spray because it uses low volumes of cleaning fluid at low pressure. Remove accumulated particles in the tank wall material, thus ensuring a sterile tank
Cleaning Spray Ball
  1. Spray ball end has 360° coverage
  2. Cleaning Radius: 1m
  3. Thread Specification: DN15 ½” Female
  4. Thread Diameter: 19mm
  5. Ball Diameter: 37mm
  6. Height: 102mm
Funnel Specifications
IBC Funnels are great for easy and spill-free filling of intermediate bulk containers. These IBC funnels are resistant towards chemicals and are ideal for industrial use.
Funnel
  1. Dimension: 305mm x 305mm x 198mm
  2. Material: SUS304
Sparge Specifications

Sparge
  1. Sparging Tube Assembly OD 32mm SS316
  2. Hex Nipple 1/2″ SS316 NPT
  3. Half Socket 1/2″ SS316

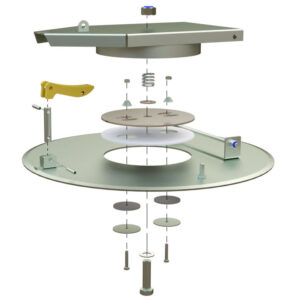

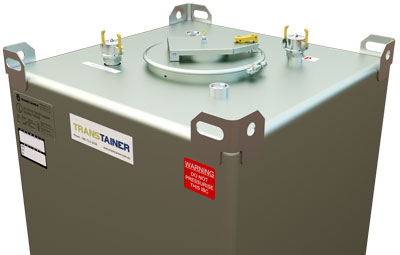

PRESSURE MANWAY Specifications

PRESSURE MANWAYCTAVGD WITH HD LID

The pressure manway is sealed to the top of the IBC with a nitrile seal, then the clamp band is tightened until air tight. The pressure pallet performs in the same way as a vent. On the vent, a spring mechanism will open at – 3.5 kpa to allow atmospheric air to enter the tank. When the tank reaches a pressure level of 21 Kpa, the spring will open again to relieve air from the tank.

In the event of fire, the pin mechanism on the latch will fail at 138 degrees centigrade. After the failure of the pin, the hatch assembly will open and the tank will vent to the atmosphere through the open hatch.

Pressure Setting : 21 kPa
Venting capacity : 2100 l/m (Airflow)
Maximum in flow : 300 l/m (Liquid)
Pressure orifice : 1,7671 mm2 (150mm diameter)
Pressure pallet : 304 SS
Pressure gasket : Teflon
Pressure spring : 304 SS

Vacuum setting : -3.5 kPa
Vacuum capacity : 1,000 l/m (Airflow)
Maximum outflow : 250 l/m (Liquid)
Vacuum orifice : 1,500 mm2
Vacuum pallet : 304 SS
Vacuum gasket : Teflon
Vacuum spring : 304 SS

Temperature Setting : 138oC
Fusible material : Low melt alloy
Body material : 304 SS
Roll over protection : No

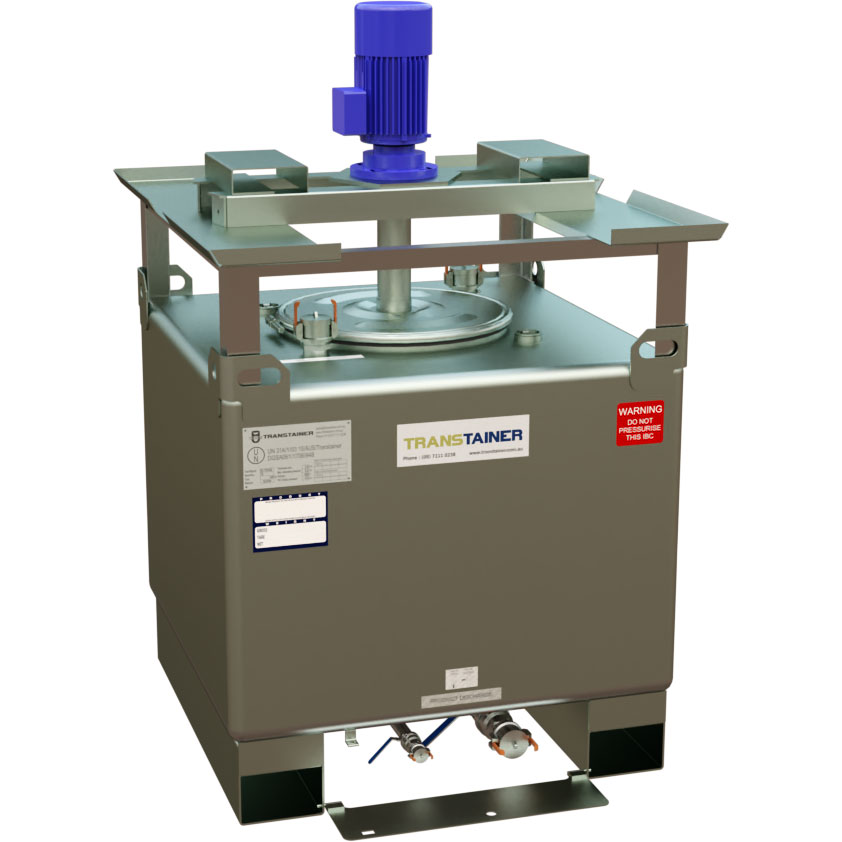

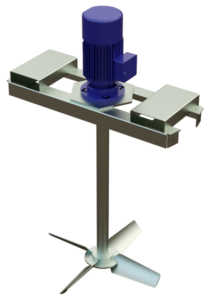

IBC Mixer / Agitator Specifications

Electric IBC tote agitators & mixing equipment

High efficiency agitators and tank mixers options available to meet the jet fuel mixing requirements and to suit the CT Aviation IBC structure. The top-entry agitator mixers incorporate advanced designs in mixing technology achieving ultimate blending & mixing conditions in open or closed top vessels.

MixerMaterial: 316 stainless steel
Electric motor : 2.20 kW
Speed RPM : 1400 rpm
Protection : IP55
Rating : 415V/3PH/50HZ
Shaft Speed : 220 rpm
Shaft diameter : 25 mm
Impeller : E-400
Impeller diameter : 360 mm

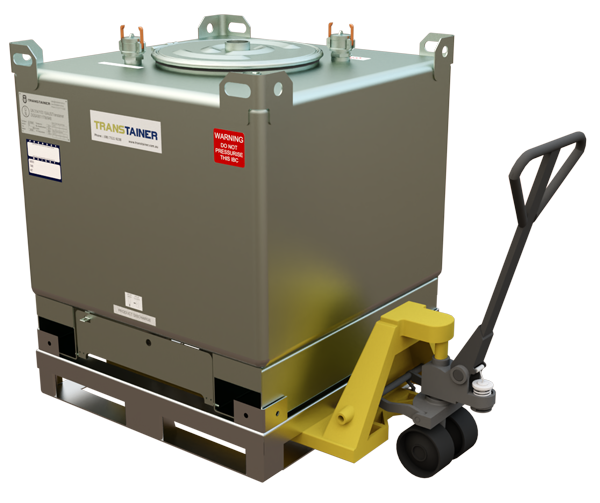

Pallet Skid Unit Specifications

Four-way fork entry

Transtainer CT IBC Pallet Skids are designed to suit their Container Tote series of Intermediate Bulk Containers for transportation and handling purposes.
• Robust and durable design
• IBC lifting and handling using forklifts and pallet lifters
• Standard pallet dimensions compliant with rail/road containers
• Weather resistant to extreme temperatures, rains and UV rays
• Resistant to wear and tear for prolonged and repeated operations


Specifications
Material Options 5mm Stainless Steel 304 plates and sections.
5mm Stainless Steel 316 optional
Pallet Size 1106 x 1106 x 175mm high
Standard pallet size for transportation.
Fork Lift Access Four-way fork entry
Weight Limit ______ in Litres/Gallons of IBC
Pallet Skid Unit
Trailer
Specifications Features

Width : 1500 Mm
Length :2480 Mm
Depth : 300 Mm
Overall Measurements
Width : 2000 Mm
Length : 3830 Mm
Height: 800mm / 900 Mm With Cage
Chain Standard : 10mm
Coupler Standard: 50mm 2000kg
Lights Standard : led Light;7pin Plug
Tires Standard: 185r 14”

 Rocker roller suspension Cable disc brakes
Swing up jockey wheel Front & rear tailboards
Tie rails all around trailer Spare wheel
Sunraysia rims NEW light truck tyres
Rubber mud flaps rear of mudguards
LED tail lights
Checker plate steps between front & rear of mudguards

PIUSI PUMP ASSEMBLY

PIUSI Fuel Pumps Specifications

PIUSI fuel pumps are transfer pumps suitable for flammable fuels such as gasoline, kerosene, and diesel. These are easy to use, versatile, and compact and adapts to your requirements.

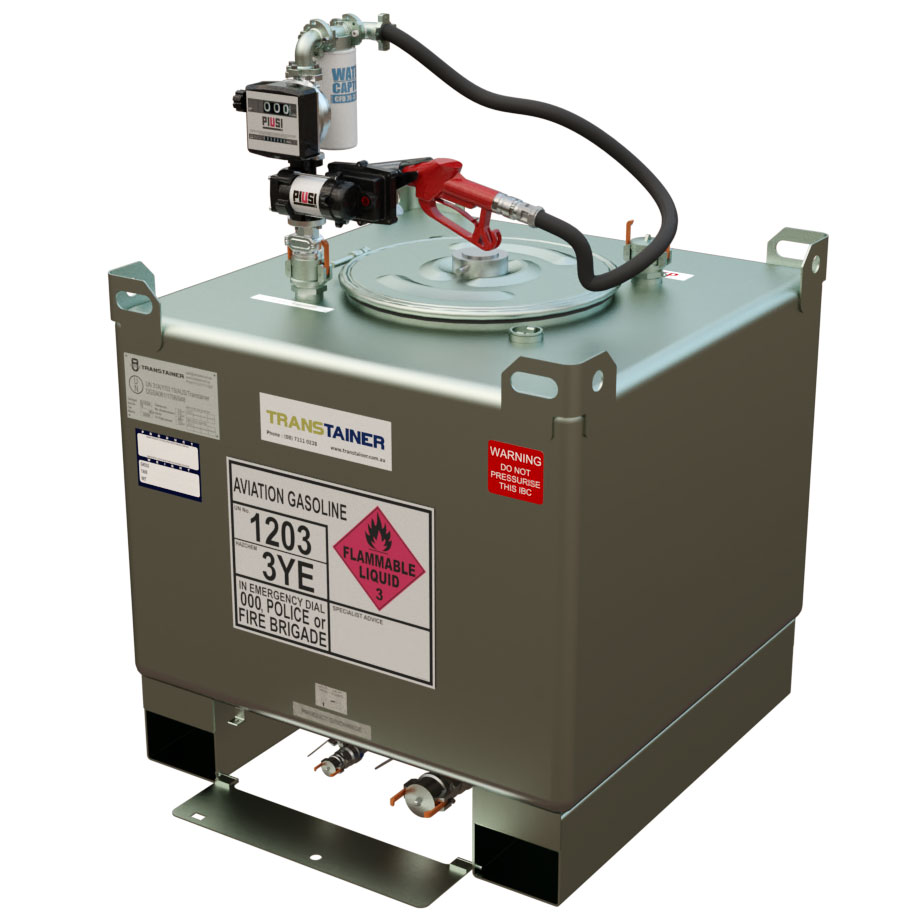

Container Tote Aviation General Duty With PIUSI Pump
  1. PIUSI EX50 12V DC 250W
  2. ATEX/IECEx directives: the pump satisfies the stringent criteria regarding product safety.
  3. Compact and sturdy construction
  4. Anti-noise filter EMC (electromagnetic compatibility)
  5. Material: Cast-iron body, Sintered Steel rotor, PPS vanes, Steel shaft, Viton seal
  6. Inlet/Outlet diameter: 25mm BSP
  7. Flow rate: High efficiency pump able to dispense up to 50 Litres/min (13 gpm) with little voltage draw, ensuring a longer life
  8. Fully flanged components: Pump, flow meter and filters can be fitted or replaced without the use of sealing paste, making connections quick and safe.
  9. An integrated bypass valve; thermally protected.
  10. In addition, PIUSI EX50 is UL / ULC approved for use in the United States / Canada markets.
  11. Noise Level: 74 dB at 1m
  12. Speed: 2700 rpm
  13. Weight: 6.9 kg

YANMAR PUMP ASSEMBLY

Yanmar Fuel Pumps Specifications

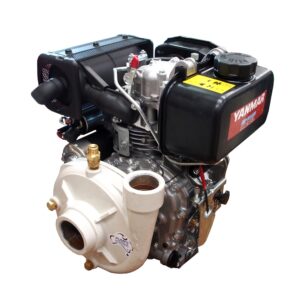

The Yanmar diesel-driven pumps are strong working machines to work through heavy duty environments like mining, drilling, agricultural, marine, suburban industries, and oil & gas. The strong engine exceeds the power and environmental expectations. The pump uses Yanmar’s own efficient combustion system with low fuel consumption. Great for strong fluid transfer applications.

 Yanmar CI15 L48
Powered by Yanmar Diesel Engine L48. Electric start optional
Engine Horsepower: 4.8HP
Direct injection engine with easy installation
Low noise and low vibration
Material: Anodised Cast Iron casing, Bronze impeller, Silicon Carbide Mechanical seal, Viton Elastomer
Inlet/Outlet diameter: 40mm
Pumps up to 350 Litres/min
Strainer Included
Speed: 3400 rpm
Weight: 56 kg

PUMPING ACCESSORIES

Suction Tube Specifications

Suction Tube
  1. DIN40 SCH40 Stainless Pipe
  2. Camlock Male 2 in BSP Aluminum
  3. Dust Cap 2 in Aluminum
Hose Reel Specifications
Heavy duty jet fueling hose reel with spring-rewind and twin pedestal supports.
  1. Black Nitrile synthetic rubber
  2. Fitted with 25mm i.d. hose available in 4m-20m lengths
  3. Operating pressure up to 3,500 kPa (500 psi)
  4. Maximum operating temperature 80°C
  5. 25mm BSP (F) reel inlet and 25mm BSP (M) hose outlet
  6. Wall / floor mounting bracket integral to the reel design
Cut-off Fuel Dispensing Nozzle Specifications
The dispensing nozzle is ATEX certified, fitted with a device that automatically shuts off flow when the tank is full, preventing an overfill scenario. It is designed for a quick and clean refuelling.
  1. Automatic cut-off
  2. Material: Aluminium body with NBR seal
  3. Spout diameter: 29mm
  4. Inlet diameter: 25mm BSP
  5. Flow rate: 140 Litres/min
  6. Only with pumps
Fuel Dispensing Meter Specifications
The ATEX certified flow meter has been engineered for an accurate measuring of the quantity of fluid dispensed that meets the ATEX/IECEx requirements related to the use in potentially explosive atmospheres.
Reliable and easy to install, it can be calibrated on site and simply fitted with both rigid or flexible pipes or can be put directly on pumps and tanks.
.
  1. 3-digit display
  2. Easy to calibrate
  3. 4 flow directions
  4. Material: Aluminium body with techno-polymer nutating disk chamber
  5. Inlet diameter: 25mm BSP
  6. Outlet diameter: 25mm BSP
  7. Flow rate: 20-120 Litres/min
  8. Maximum pressure: 3.5 Bar / 350 kPa

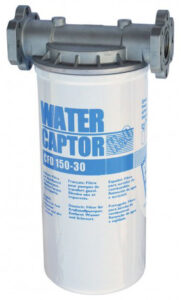

Fuel Tank Filter Specifications
Fuel Tank Filter removes both water and particles out of diesel to a micron rating. This diesel storage tank filter can be installed before or after the pump, and has a spin on cartridge, which makes it easy to be replaced when it starts to get full.

.		 Cannister filter: 30-micron
Inlet diameter: 25mm F BSP Flanged
Outlet diameter: 25mm F BSP Flanged
25mm-12 F UNF Filter Thread
Max. flow rate: 70 Litres/min
Suitable for diesel and petrol
Includes 1 x filter head and 2 x filter element
