DN50 2″ Pressure/Vacuum Relief Vent: Ultimate Tank Protection
Engineered Safety for Your Valuable Assets

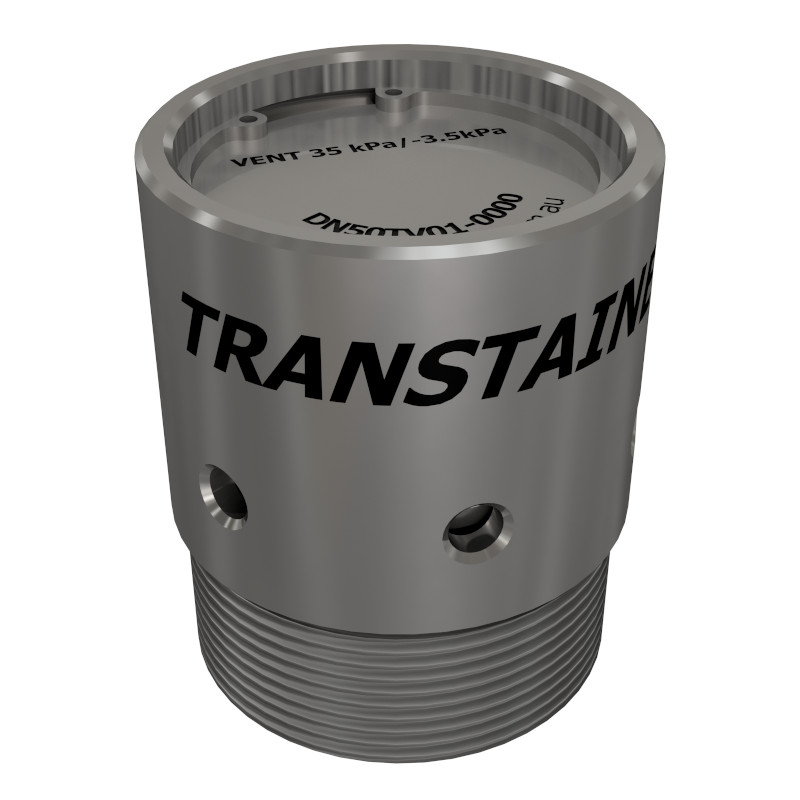

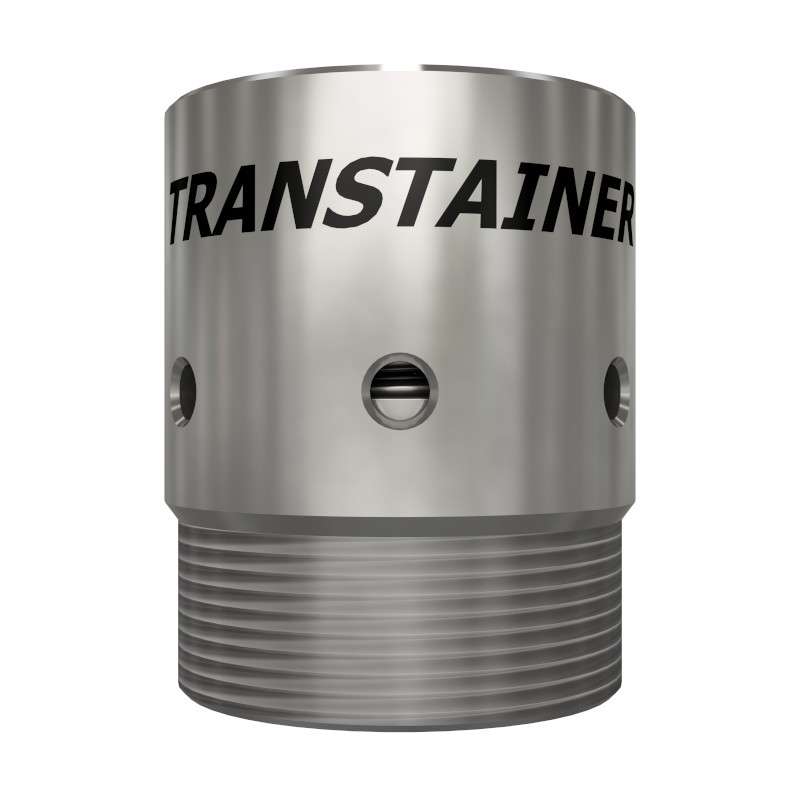

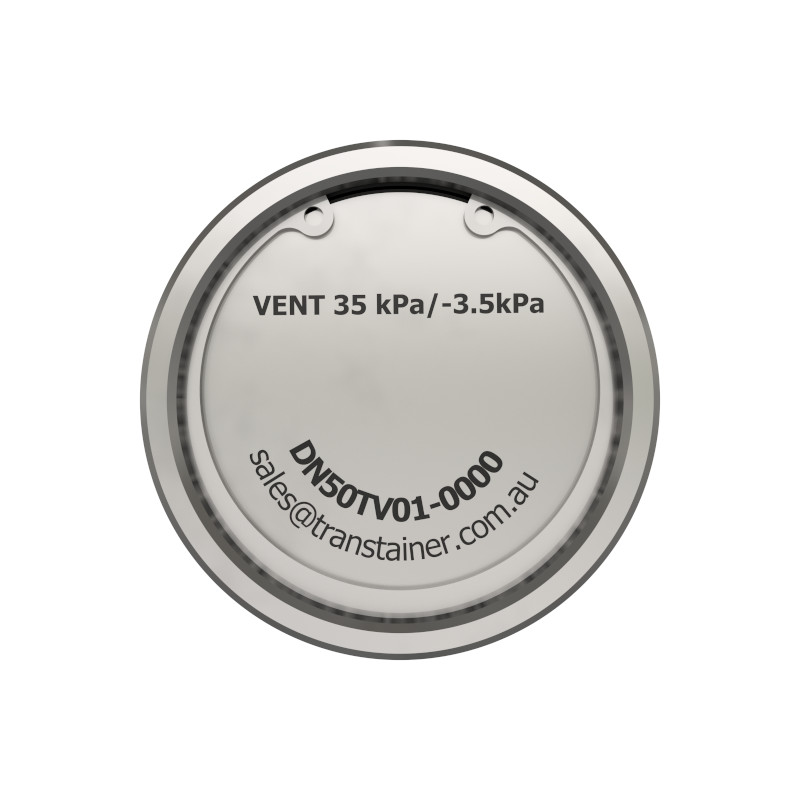

Protect your transport and storage tanks from catastrophic damage caused by over-pressure or vacuum collapse.1 The DN50 2″ Pressure/Vacuum Relief Vent (Product Code: 875-0042) is the robust, high-performance solution designed to maintain the structural integrity of your Transtainers and storage vessels.
Key Benefits: Why Choose Our Transtainer Vent?
| Feature | Benefit to You |
| Dual-Action Safety | Controls both over-pressure (33 Kpa) and vacuum relief to prevent costly tank damage and maintain regulatory compliance. |
| Superior Durability | Constructed from 316L / 1.4409 Stainless Steel for exceptional resistance to corrosion, harsh chemicals, and extreme operating environments. |
| Industry Versatility | Ideal for road tankers, transport fleets, and storage tanks in the chemical, food, and pharmaceutical industries. |
| Extreme Temperature Range | Operates reliably in conditions from -40°C to +200°C (O-ring dependent), ensuring performance in any climate. |
| Lightweight Design | Weighing just 1.011 kg, it provides maximum protection without adding significant bulk or complexity to your equipment. |
Detailed Technical Specifications
| Specification | Value |
| Product Code | 875-0042 |
| Nominal Diameter | DN50 (2”) |
| Thread Type | BSPT |
| Pressure Setting | 0.33 Bar (33 Kpa) |
| Vacuum Settings | From -0.02 to -0.11 Bar |
| Material (Body) | Stainless Steel 316L / 1.4409 |
| O-Ring Material | EPDM (Standard) |
| Working Temperature | -40° to +200°C |
| Weight | 1.011 Kg |
Note: The maximum temperature range is dependent on the specific O-ring material selected. Contact us for compatibility options for highly specialized applications.
Need a special pressure setting, material, or a bulk order quote?
For special feature requests, additional options, or quotes, please contact our expert sales team directly.
