Grease Pressurised Follower

Grease System Pressurised Follower

Category:

GREASE SYSTEM PRESSURISED FOLLOWER

PRODUCT FAMILY CODE

GREPF

SIZES

  • 500 L   – GREPF500
  • 700 L   – GREPF700
  • 1000 L – GREPF1000
  • 1200 L – GREPF1200
  • 1500 L – GREPF1450
  • 1500 L – GREPF1500
  • 4000 L – GREPF4000
  • Custom sizes available

APPLICATIONS

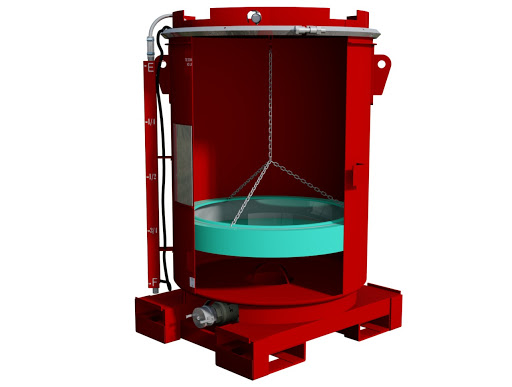

  • The Pressurised Follower series grease container is designed for transporting and dispensing heavy viscous products.
  • Pump prime is assisted via the use of a pressurised follower operating at 32kpa.
  • The unit has become the grease container of choice for many customers due to its cost effective transportation footprint and very high purge rates.

FEATURES

  • Significant market input into design
  • Effective discharging mechanism providing high purge rates
  • Standard pallet footprint for efficient freight operations
  • High reliability  providing low cost operation
  • Flexibility via many different sizes including custom designs and manufactured in mild steel or stainless steel
  • Able to be used for many products including inks, foods, adhesives, pastes and coatings

STANDARD EQUIPMENT

  • Fill / Discharge Point: 3” Ball valve
  • Coupling: 3” Camloc adapter and cap
  • Level Indicator: External indicator
  • Vents: Pressure 35 kPa, Vacuum -3.5kPa
  • Air Line Fitting: 0.25” BSP(F) socket
  • Bottom Lift: Four way forklift entry
  • Top Lift: Four lifting lugs
  • Remote air line
  • Aluminium label panel

OPTIONS

  • Air regulator and gauge
  • Pump spear adaptor
  • Unloader stand
  • Corporate colours
  • Lifting lugs
  • Remote air line
  • Stainless label panel

OPTIONS

  • Hose reels
  • Dispensing stands
  • Bulk grease delivery trays
  • Grease supply manifolds
  • Electronic switching
  • GPS asset management
  • Remote volume management
  • Full management maintenance services

Parts

CODEDESCRIPTIONIMAGE
600-1205CLAMP-BAND WELDMENT 2 pieces
600-1204LEVEL INDICATOR CABLE GUIDE ON LID
600-1276CONTAINER LID W/ LEVEL SENSOR PROVISION
400-0011CLAMP-BAND FIXING
Hex Bolt
M20 x 2.5 mm
130 mm Long
GR8.8 ZP
450-0017CLAMP-BAND FIXING
Hex Nyloc Nut
M20 x 2.5 mm
GR8.8 ZP
870-0024CONTAINER LID SEAL
25 mm x 13 mm
3490 mm Long
EPDM P411
280-0011AIR HOSE PROTECTION FOR CONTAINER LID
Half Cut Grommet
Rubber
440-0002PRESSURE/VACUUM VENT FITTING
Full Socket
2” (50 mm)
MS BSP
SS50
231-0064LEVEL SENSOR & GPS DEVICE FITTING
Half Socket
1 1/2" (38 mm)
Female BSP Thread
SSH40
960-0003FLEXIBLE FOLLOWER BAG
CoverFLEXTM FR
Spread coated PVC Bag
Gloss Acrylic Lacquer
340-0000FOLLOWER TUBE
PVC Rolled Tube
OD 1-1/4" (32 mm)
3195 mm Long
ID985
700-0003FLEXIBLE FOLLOWER
Ring & Chain Weldment to be used w/ Flexible Follower Bag
Ring: OD 960 mm
Chains: Links Ø4 mm
Split Link: 960-0009
Galvanised
700-0237SOLID FOLLOWER
Plate & Chain Weldment w/ Nitrile Wiper
Plate: OD ???
Chains: Links Ø4 mm
Split Link: 960-0009
Galvanised
600-0067FOLLOWER LID FIXING
Plug & Swivel Eye-Eye Weldment
Plug: 1" (25 mm) MS BSP
Swivel Eye-Eye: Ø1/4" (6 mm) SS WLL 0.386 Tons
GSWEE06C
960-0009FOLLOWER CHAIN FIXING
Split Link
Ø6 x 32 mm
Galvanised
NOBLES CFLS050
240-0000FOLLOWER TUBE FITTING
PVC Tube End-to-End Fitting
Nipple
1” (25 mm)
Poly
280-0012AIR HOSE PROTECTION FOR SIGHT TUBE BRACKETS
Grommet
Rubber
238-0003DUST CAP TYPE DC
3” (80 mm)
Aluminum
237-0003CAMLOCK TYPE F
3” (80 mm)
Male - Male Bsp
Aluminum
