PRODUCT FAMILY CODE

ADBMIN

SIZES

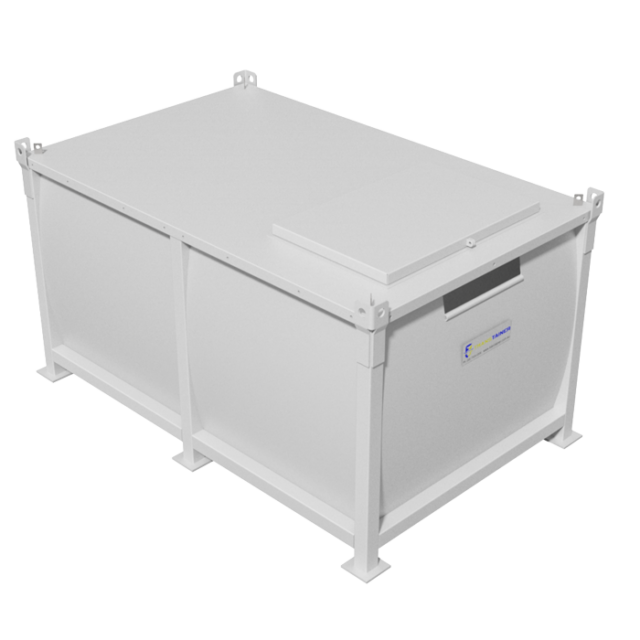

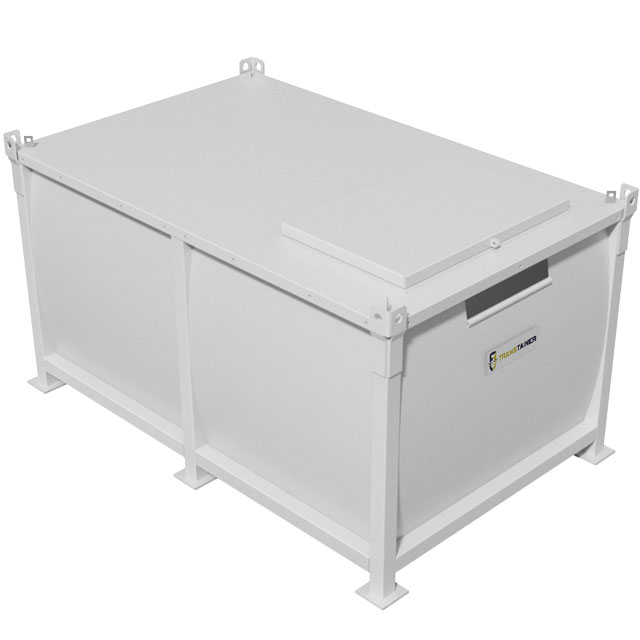

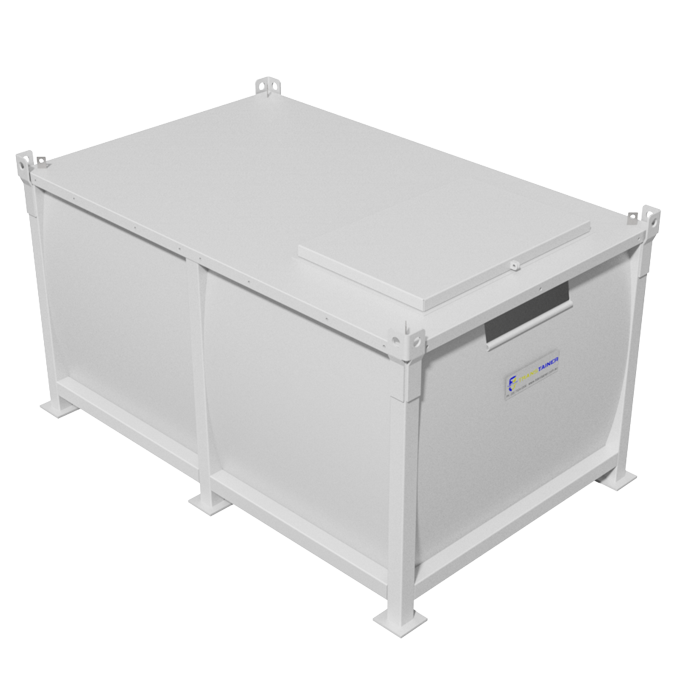

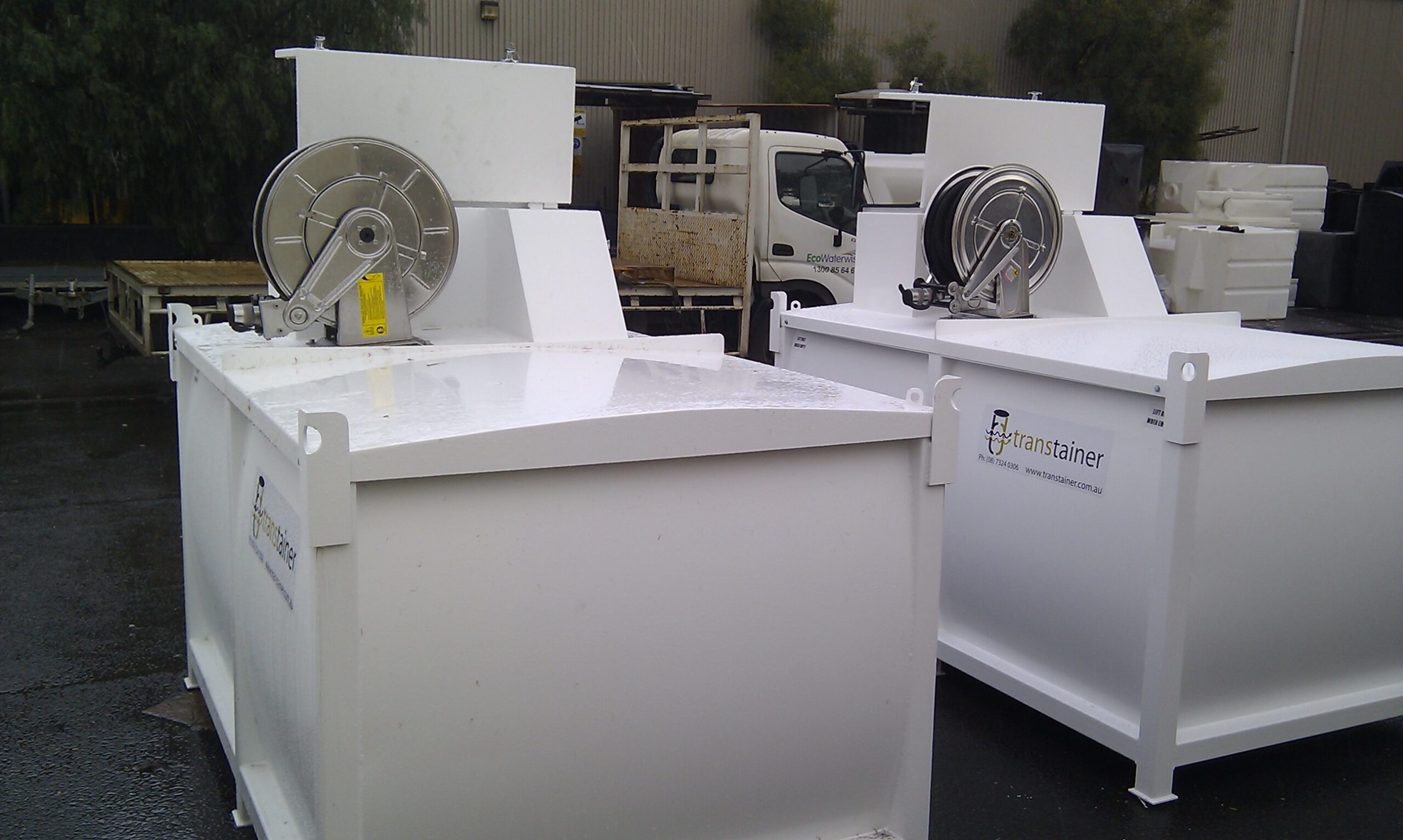

• 2000 L on site transport tank – ADBMIN2000
• 20000 L bulk storage tank      – ADBMIN20000
• Custom size available

APPLICATIONS

FEATURES

• Above ground large volume storage tank min 20kl allows sizeable buffer stock between deliveries
• Electronic systems in above ground base tank designed to meet onsite mining standards

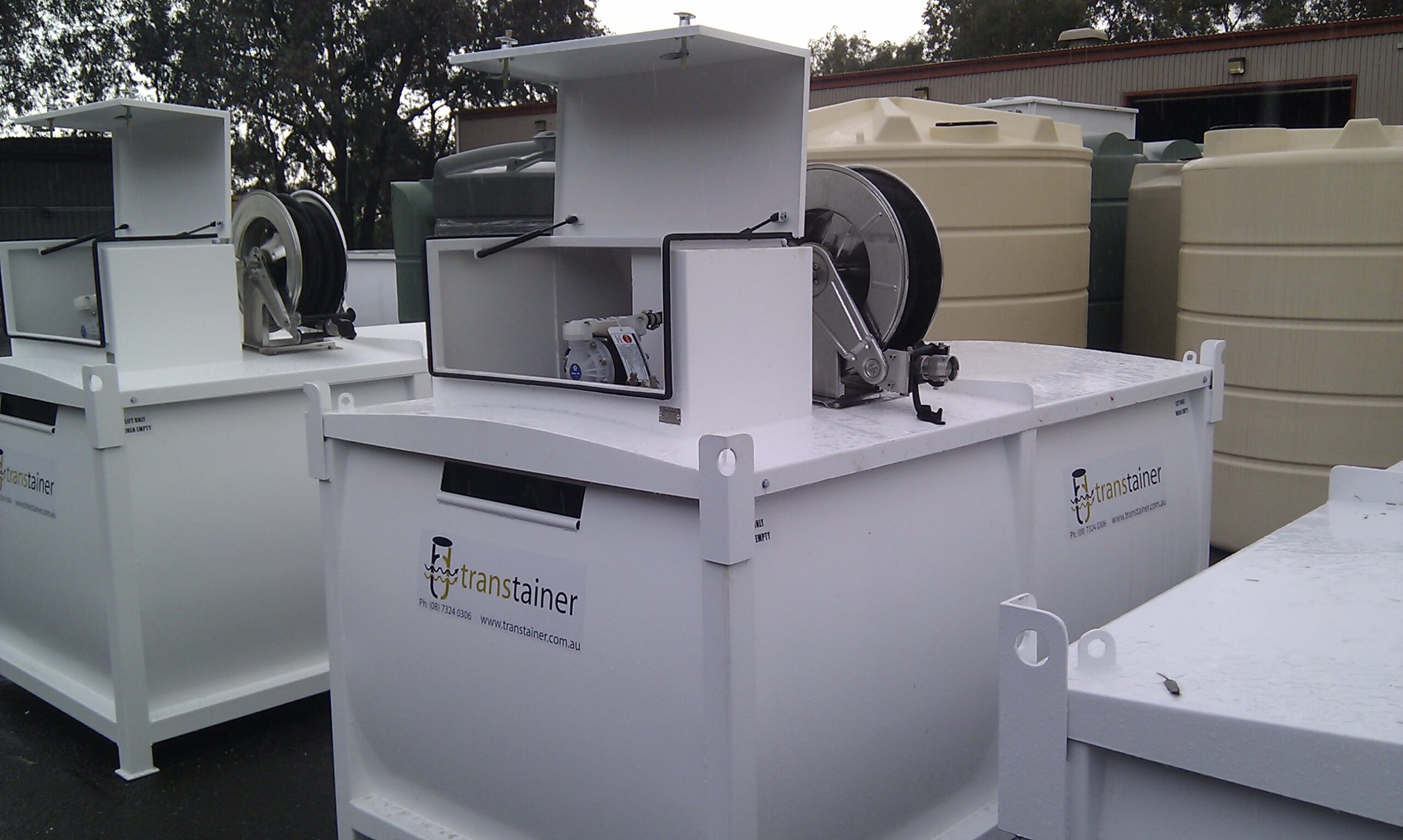

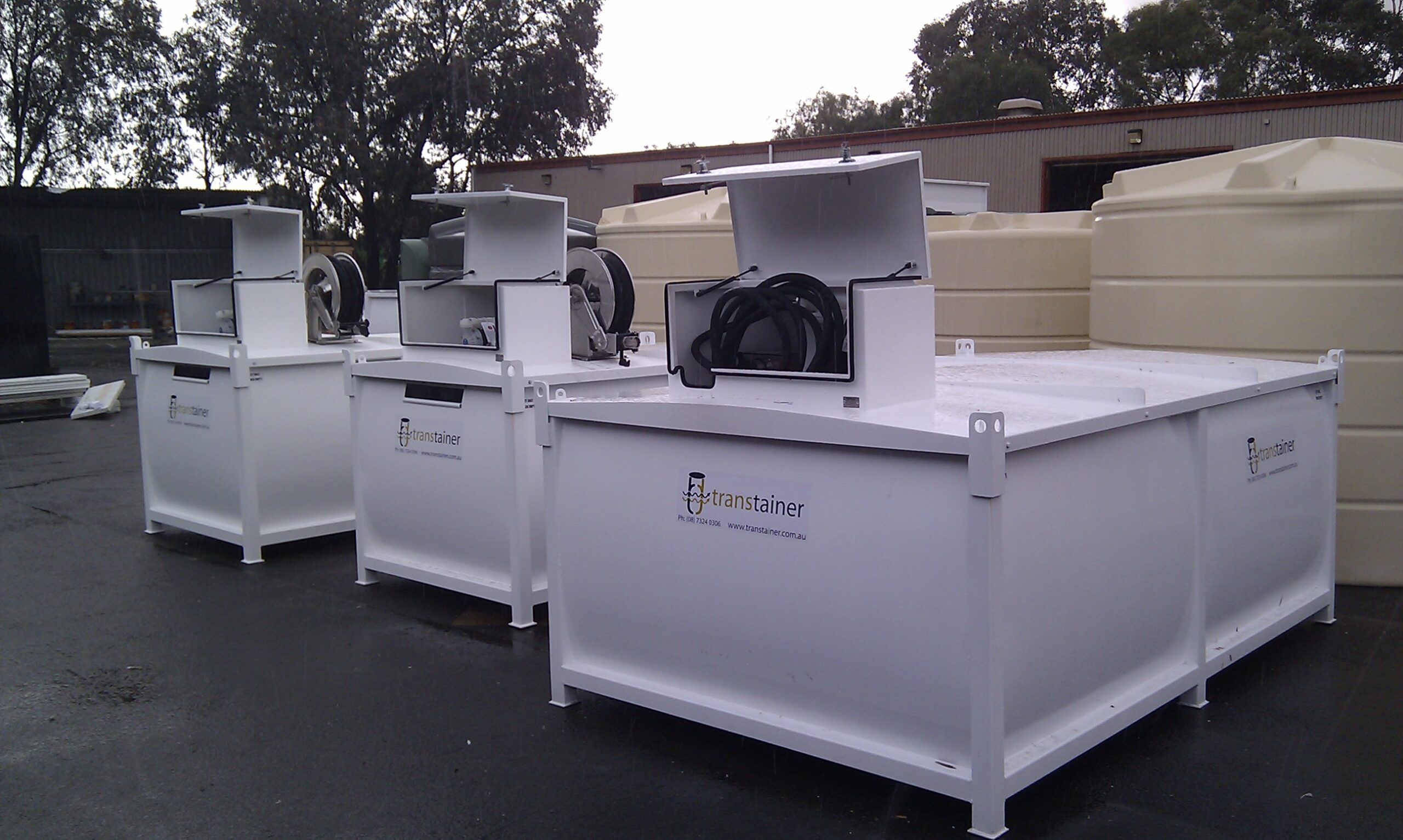

• Transportable tanks allow economic load transfer on mine site to outlying locations
• 20kl self bunded tank ensures total containment of AdBlue® on site in non pigmented tanks
• Self bunded transport tanks are designed with stainless steel inner tanks to ensure compatability with AdBlue® and to provide rigidity and strength.
• Pumping solutions on transport tank are air driven to ensure spark free operation

STANDARD EQUIPMENT (2KL BASE TANK)

• Mild steel outer tank
• Stainless steel inner tank
• Self bunded
• Fork pockets
• Lifting lugs. (Empty lift only)

• Overfill protection valve

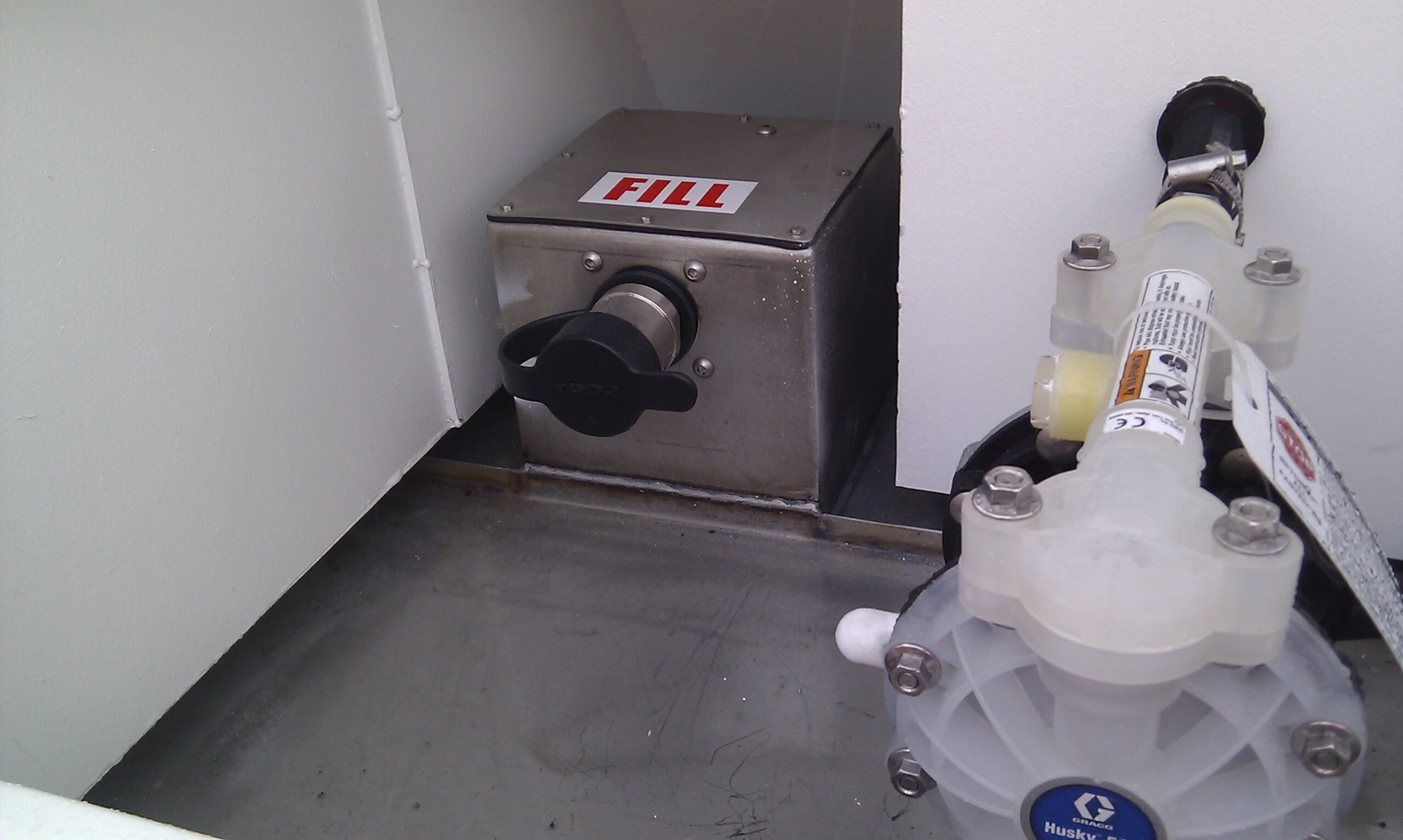

• Dry break fill adapter

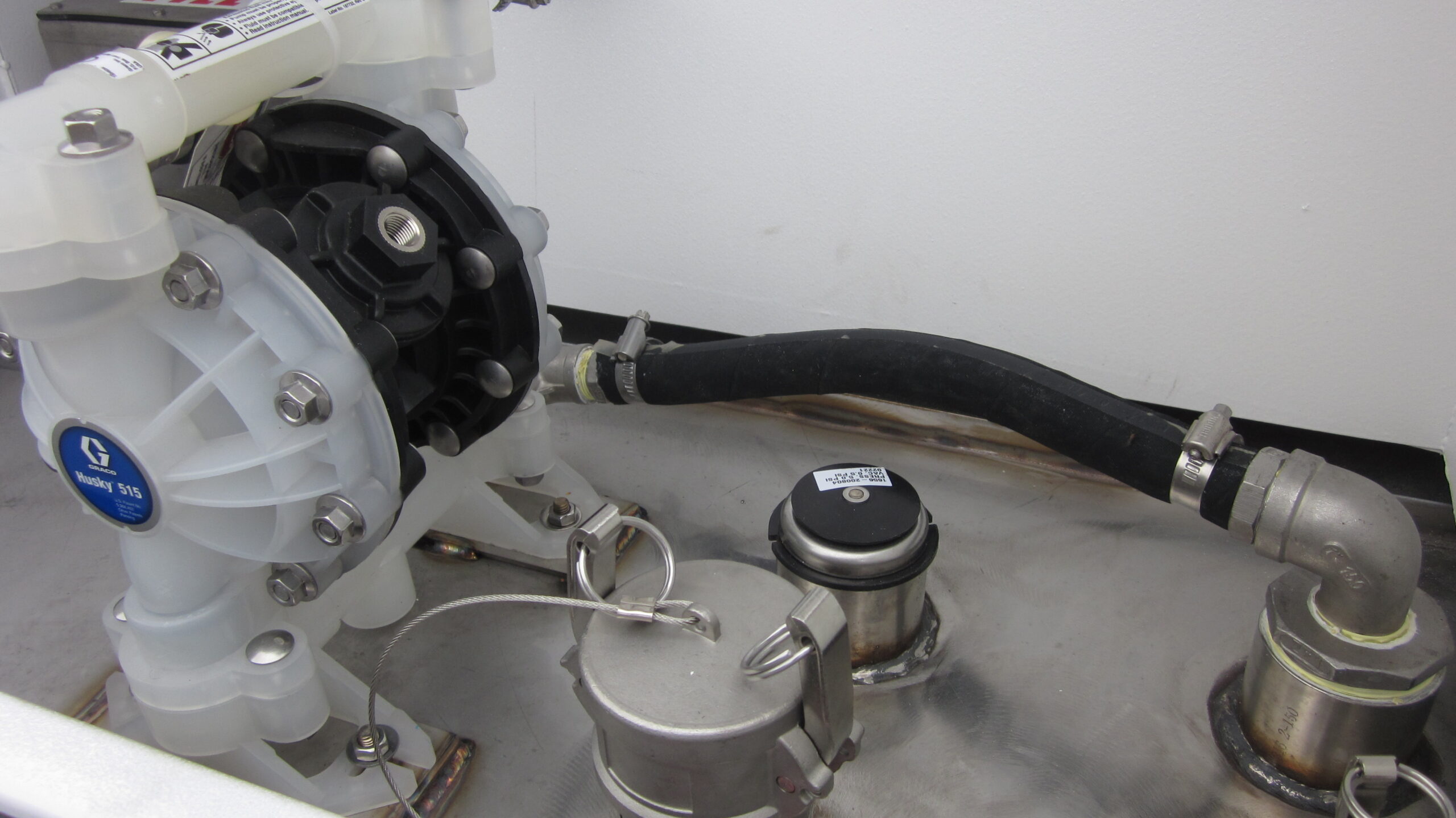

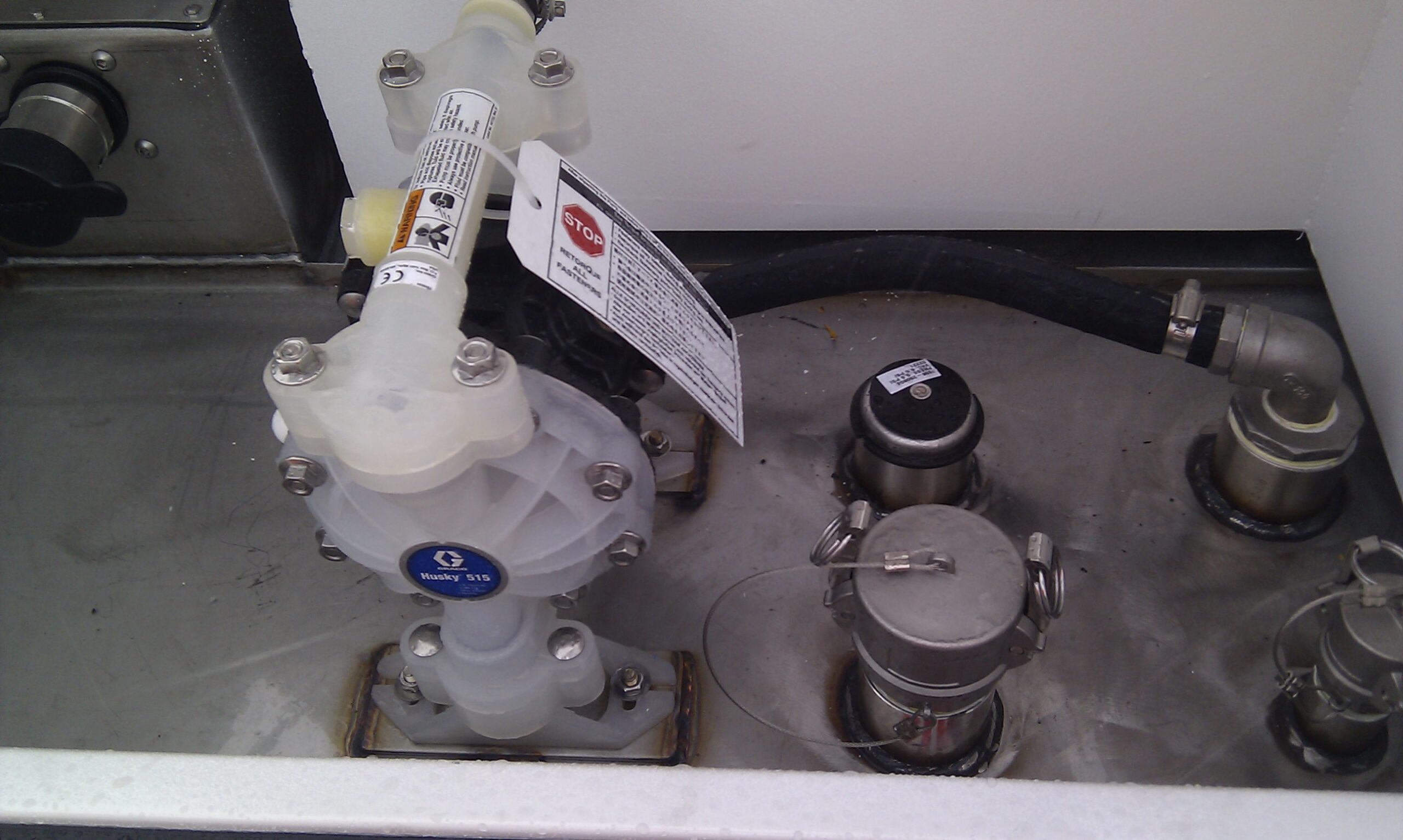

• Pneumatic double diaphragm delivery
• Delivery hose (10mtr) with dry break adapter

STANDARD EQUIPMENT (20KL BASE TANK)

• Mild steel outer container
• Polyethylene self bunded inner tanks
• Utlility area
• Pump run control
• Submersible discharge pump
• Delivery pump for tank filling
• Stainless steel delivery and suction lines

• 24 volt DC emergency shut off switch
• Decanting hose for transfer into transportable self bunded tanks
• Overfill protection valve
• High level fill alarm
• Dry break adapter on fill line
• Digital level indicator

OPTIONS  (TO ALLOW CUSTOM CONFIGURATION)

• Stainless steel / HDPE filling riser
• Dry break connectors
• Digital tank level indicator
• Overfill protection valve
• Bund leak detectors
• High level alarm
• SS316 AdBlue® compatible submersible pump

• SS316 AdBlue® compatible centrifical pump for high volume applications
• SS316 AdBlue® compatible road tank transfer pump
• Pump run control systems

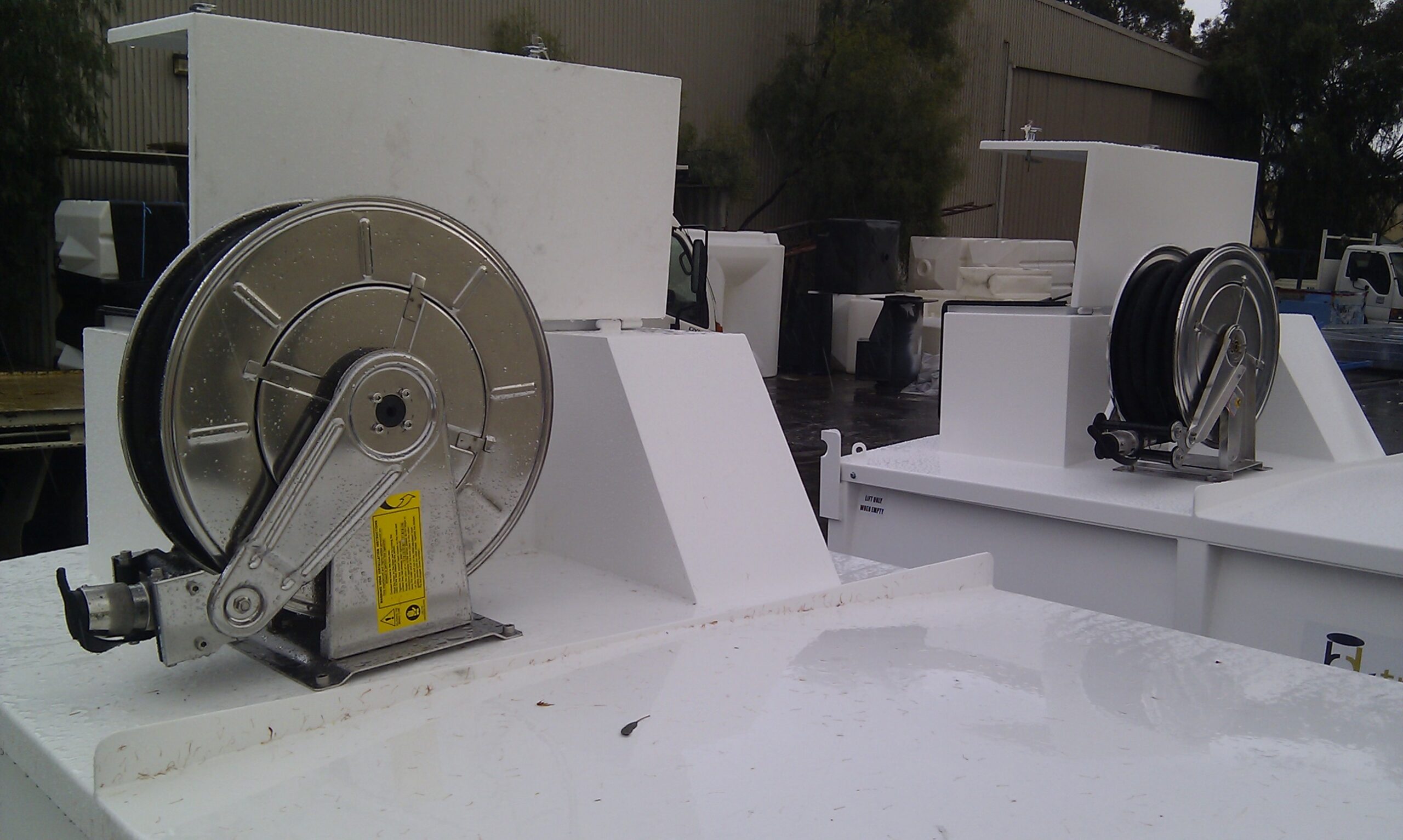

• Dispensing reels
• Automatic nozzles

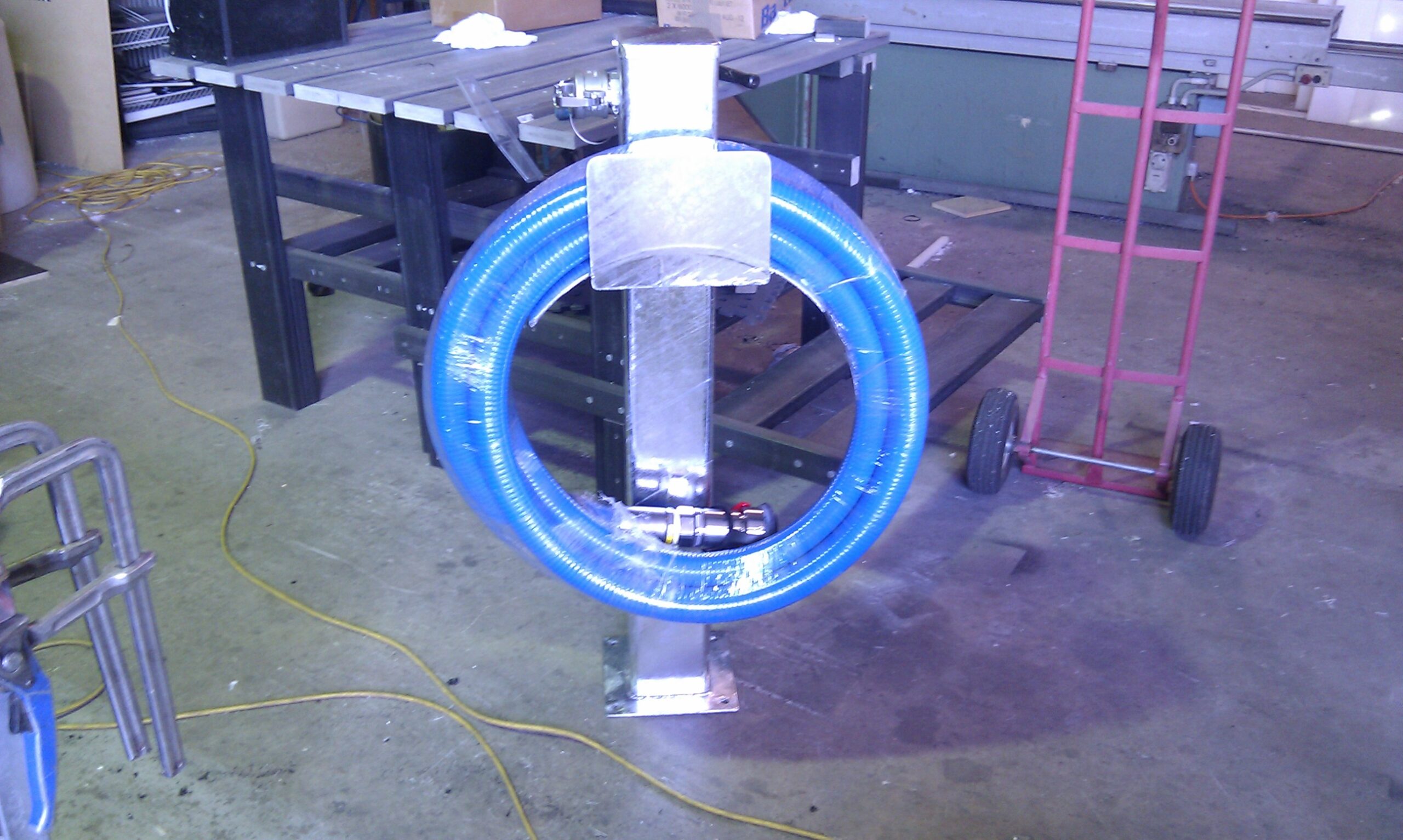

• Dispensing pedestal complete with pump, meter, nozzle and hose
