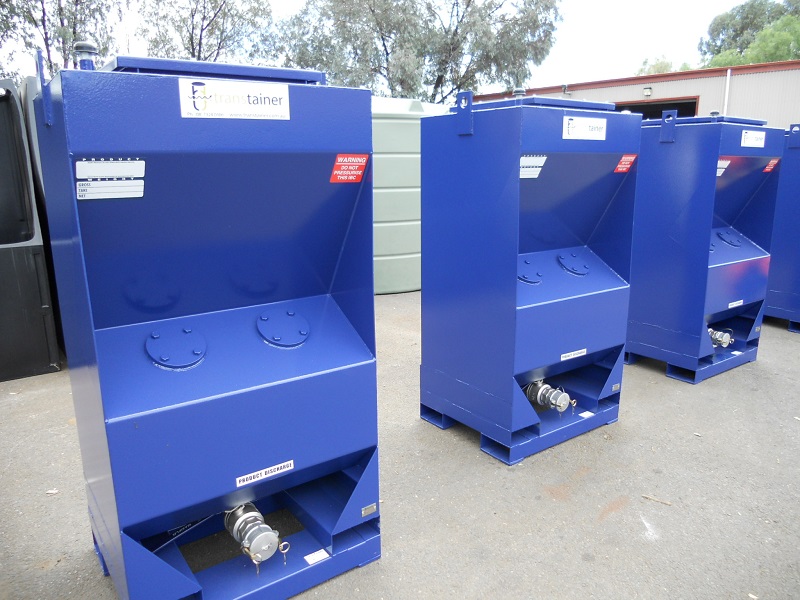

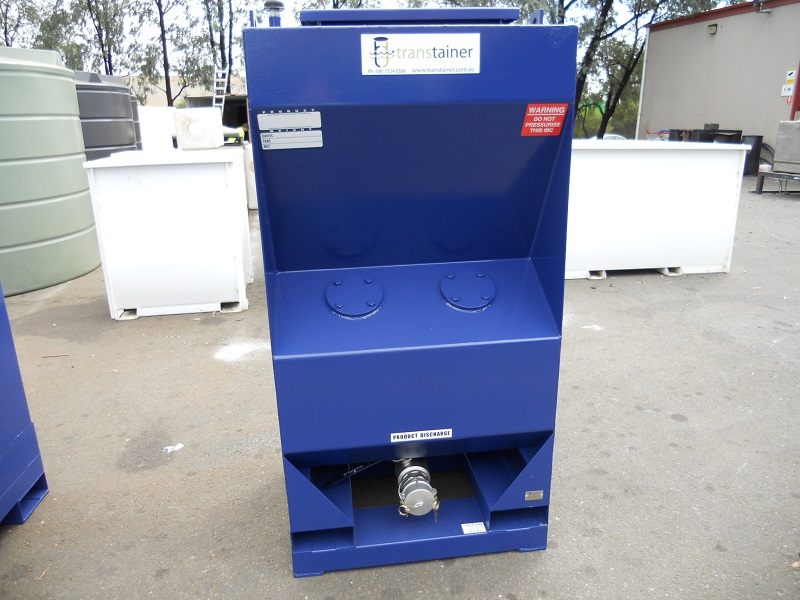

Grease System Dragline

Category: .

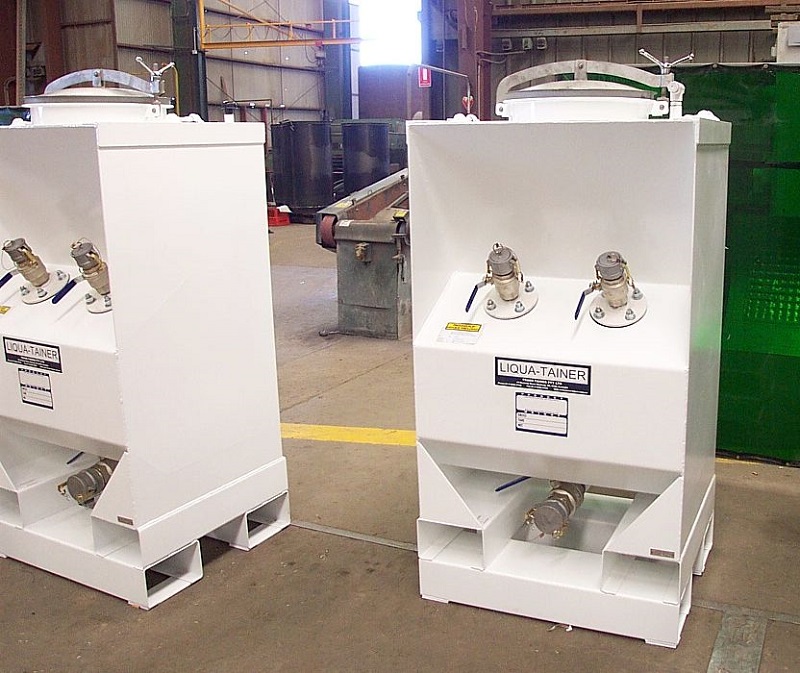

GREASE SYSTEM DRAGLINE


PRODUCT FAMILY CODE

GRED

SIZES

  • 600 L   – GRED600
  • 750 L   – GRED750
  • Custom sizes available

APPLICATIONS

  • Ideally designed for smaller volume applications.
  • This family of products are typically referred to as Drag Line containers and are designed to be left in stiu, mounted on mobile equipment.

FEATURES

  • Conventional square grease containers that rely on the shape and pump positioning to minimise product residual.
  • Typically, pumps are mounted in a side pocket (inclined) with the pump spear extending to the base of the container, normally into a pyramid base or sump.

STANDARD EQUIPMENT

  • Containment for light viscosity greases

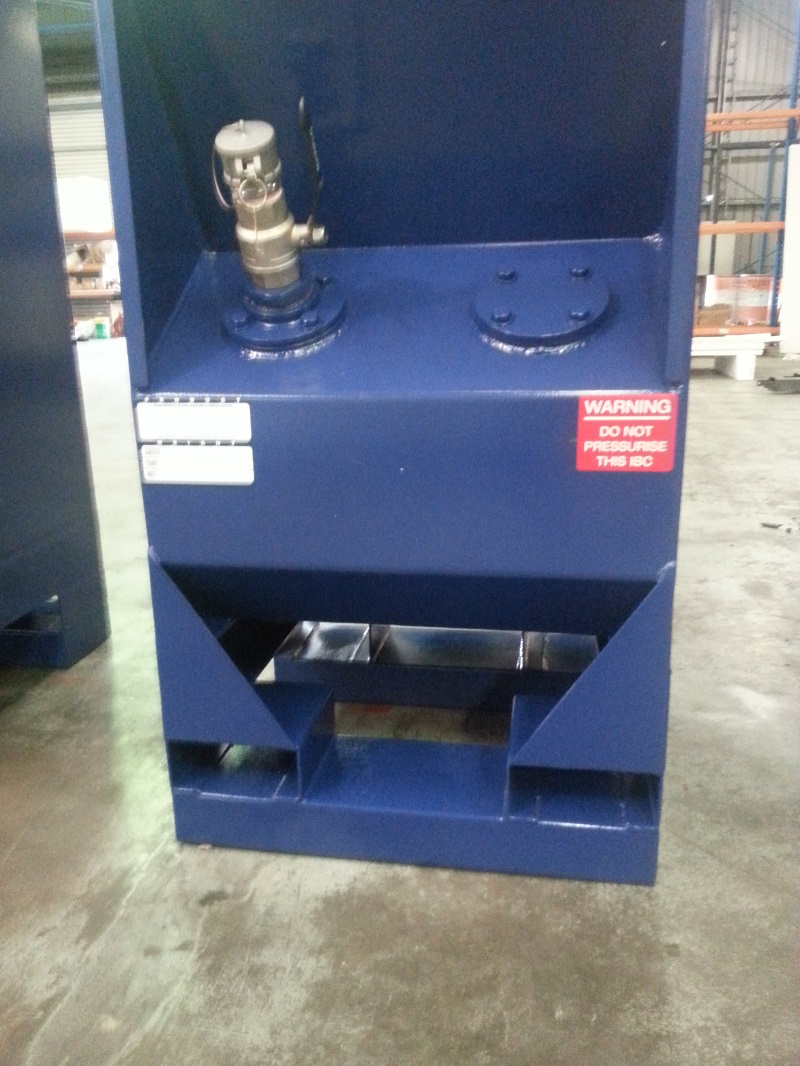

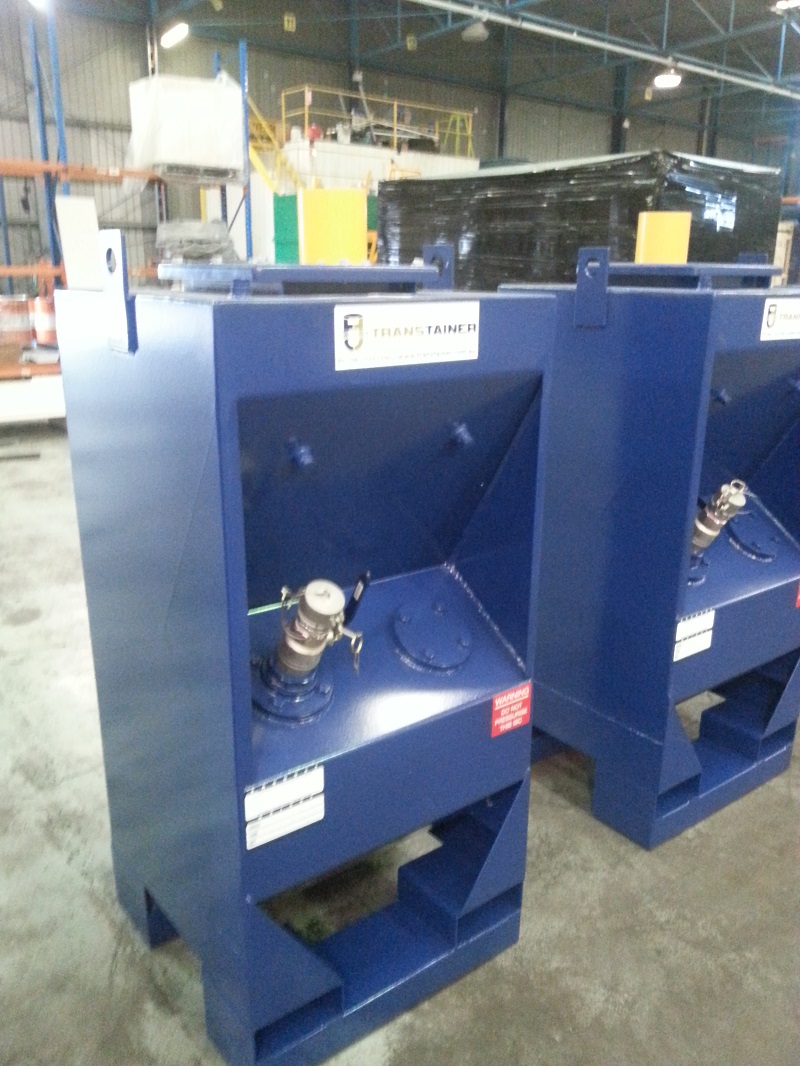

  • Side entry pocket: 2 x 3 flanges, ball valves optional

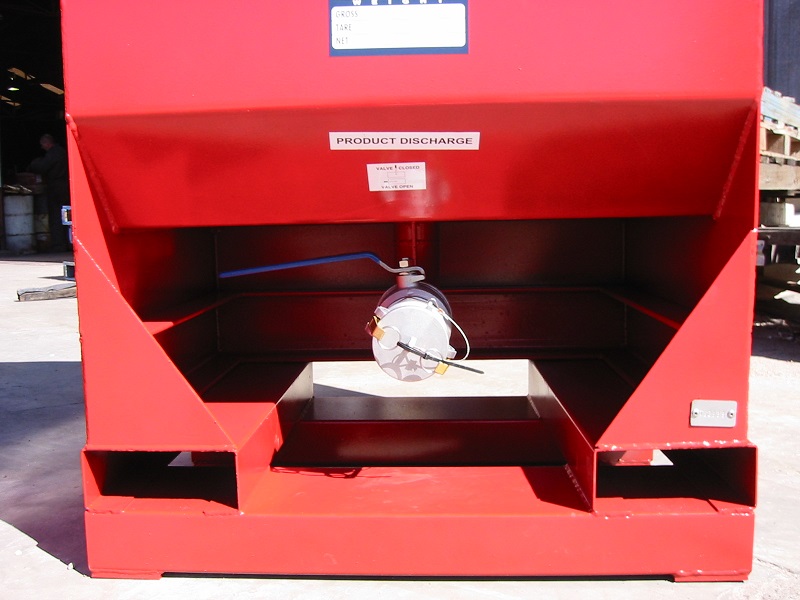

  • Bottom 3 discharge

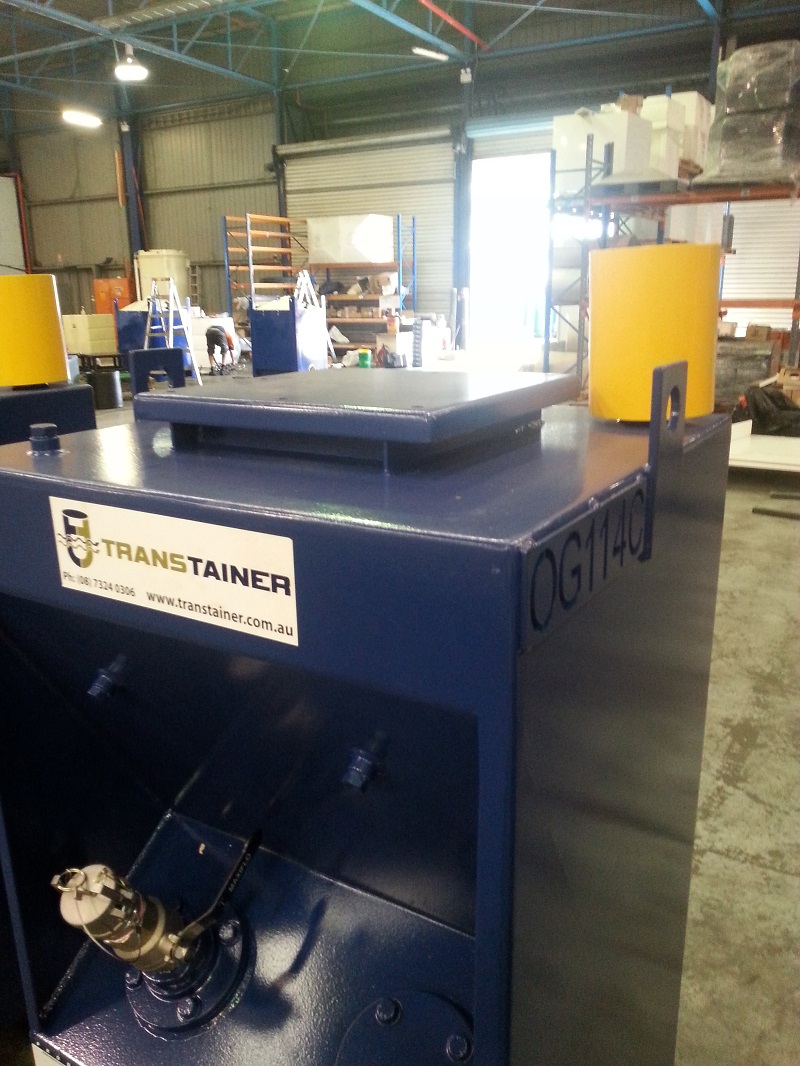

  • Hinged Manway
  • Bottom Lift: Four-way forklift entry
  • Top Lift: 2 or 4 lifting lugs (depending on model)
  • Corner protection rails

OPTIONS

  • Pumping equipment
  • Pump manifold adapters
  • Pump spear adapters

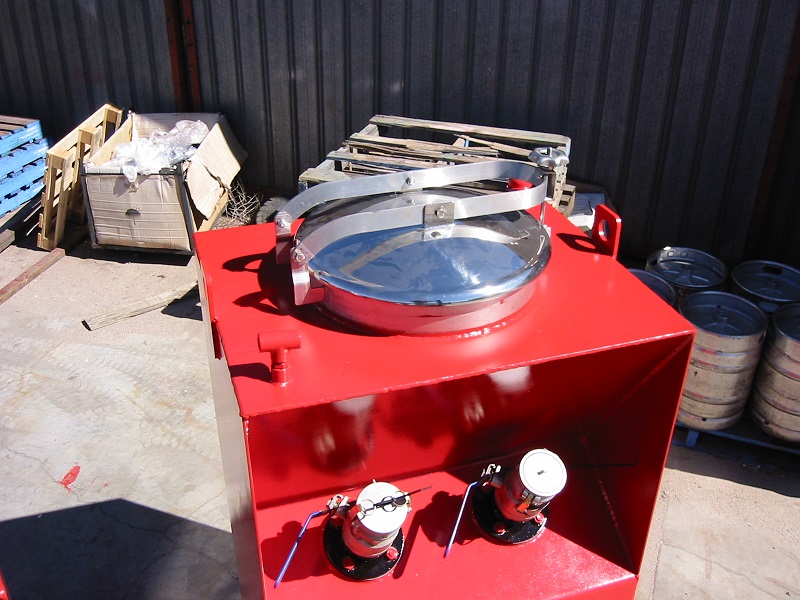

  • Stainless steel hinged lids
  • Grease pumps
  • Grease delivery meters
  • Hose reels

OPTIONS

  • Dispensing stands
  • Bulk grease delivery trays
  • Grease supply manifolds
  • Electronic switching
  • GPS asset management
  • Remote volume management
  • Full management maintenance services
Summary
Aggregate Rating
no rating based on 0 votes
Brand Name
GreaseTainer
Product Name

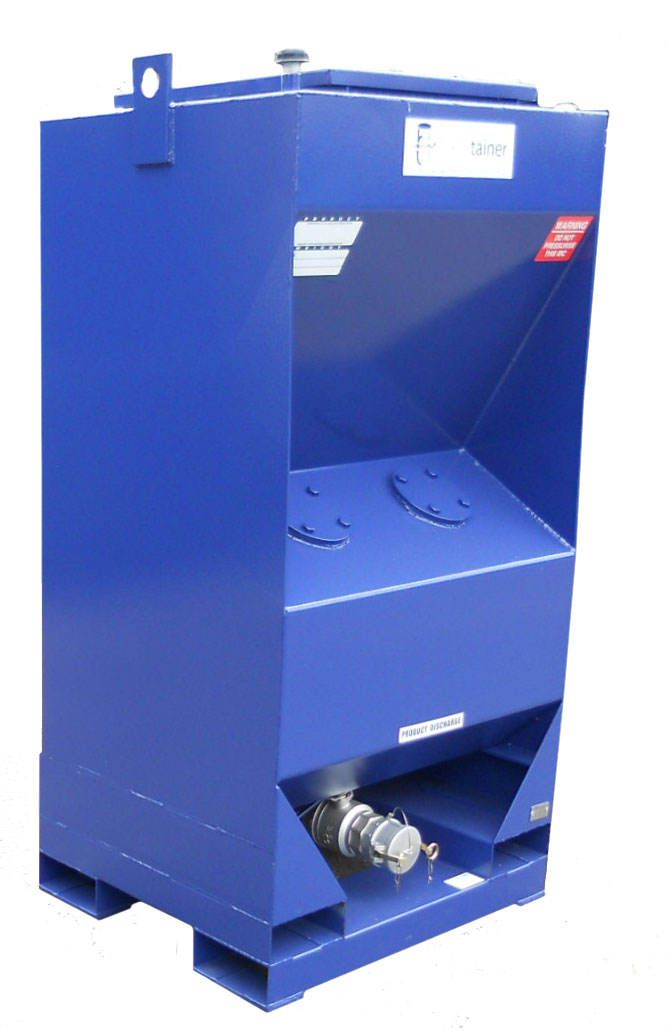

Dragline / Truck Mount Mobile Grease Containers

PRODUCT INFORMATION BROCHURE

DRAWING GRED600 (600 L)

DRAWING GRED750 (750 L)
